Character LCD Modules

GlobalTech Display offers a wide range of standard character LCD modules, which are from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LED backlights are available in various colors including yellow, green, white, red, blue, amber, and RGB LEDs, or no backlight option. We offer various IC options of character fonts including English, Chinese, Japanese, European, Cyrillic(Russian), and Hebrew/Arabic. Please contact us for datasheet or LCD display customization.
Part Number Type Resolution Photo Outline size
(mm) 		Glass area
(mm) 		Active size
mm 		View
angle 		Brightness Pin Interface OP Temp Volt Driver IC

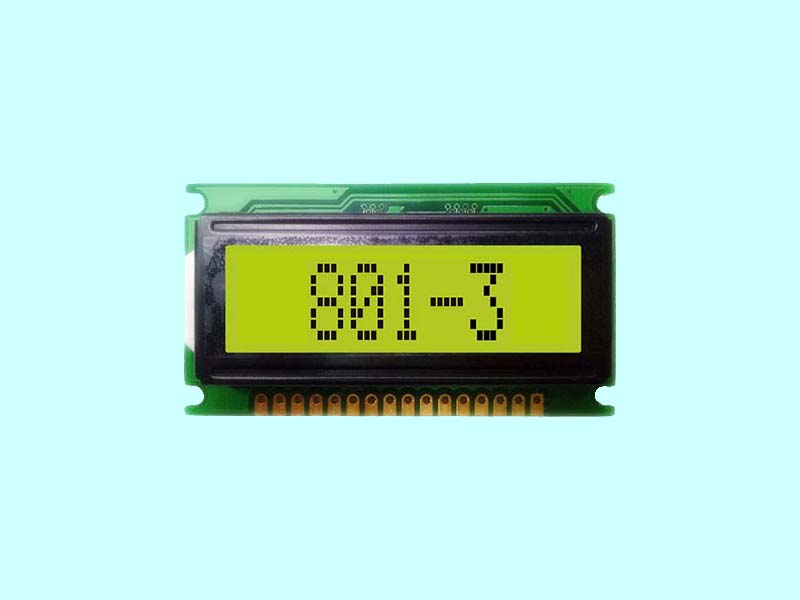

GLC0801B1 Character LCM 8*1 Character 60.0*33.0*10.7 44.0*13.0 40.83*7.93 6H WHITE 16PIN MCU/8bit -20~70℃ 5.0V

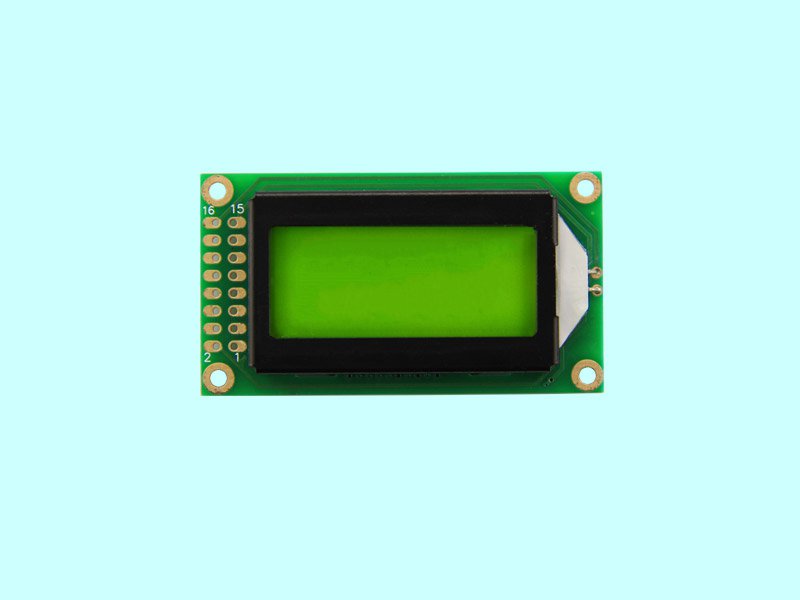

GLC0802B1 Character LCM 8*2 Character 58.0*32.0*10.3 38.0*16.0 27.81*11.5 6H YG 16PIN MCU/8bit -10~60℃ 5.0V

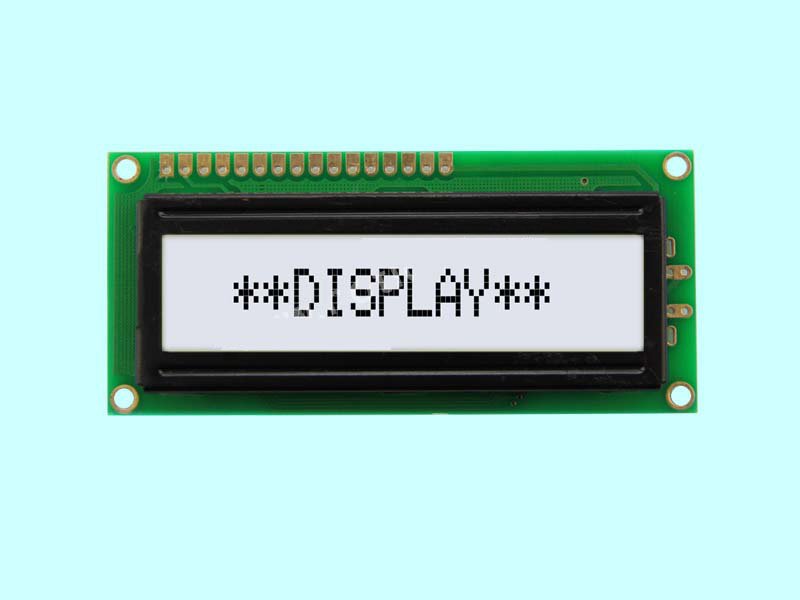

GLC1601B1 Character LCM 16*1 Character 80.0*36.0*13.1 64.5*16.0 59.46*5.96 6H WHITE 16PIN MCU/8bit -20~70℃ 5.0V

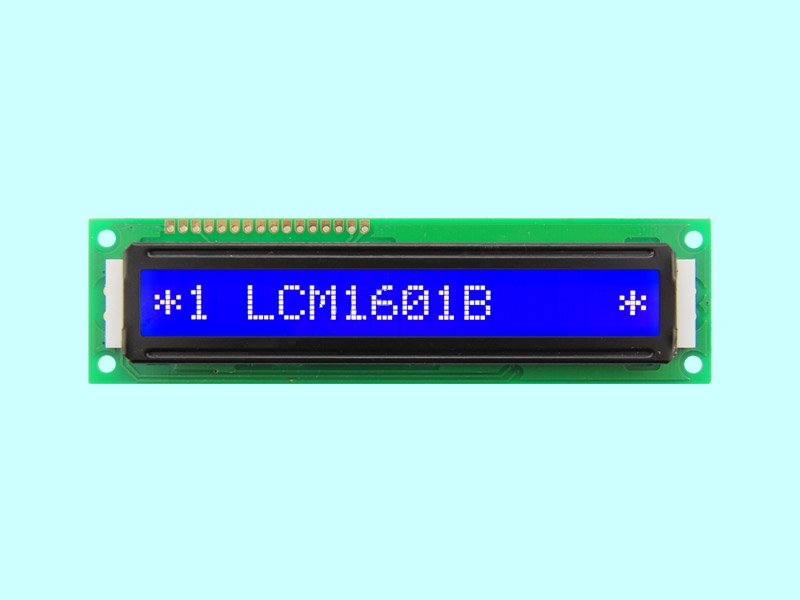

GLC1601B2 Character LCM 16*1 Character 122.0*33.0*8.0 99.0*13.0 94.73*9.56 6H WHITE 16PIN MCU/8bit -20~70℃ 5.0V

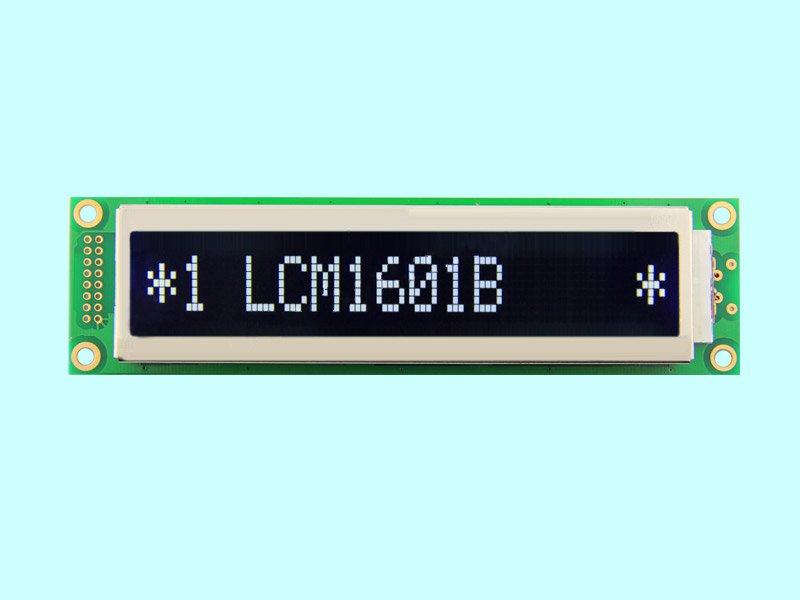

GLC1601B3 Character LCM 16*1 Character 151.0*40.0*9.6 120.0*23.0 114.0*14.54 6H WHITE 16PIN MCU/8bit -20~70℃ 5.0V

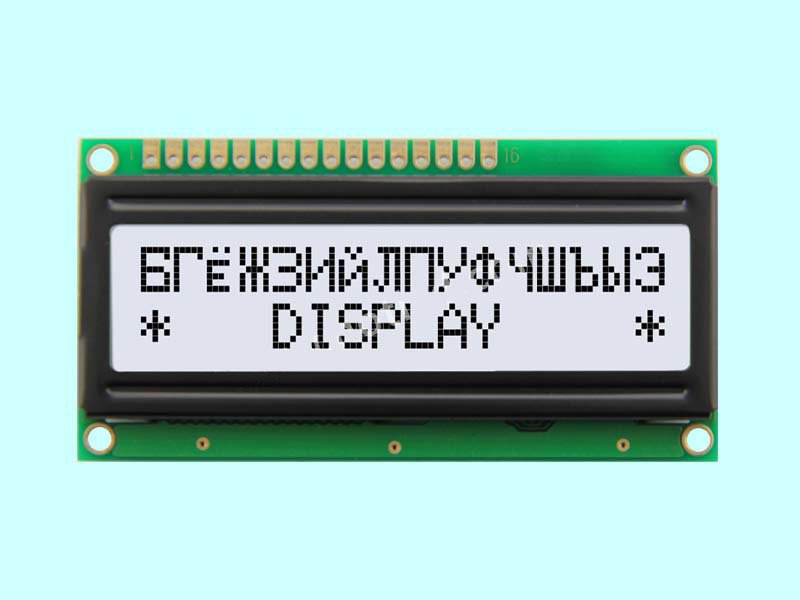

GLC1602B1 Character LCM 16*2 Character 72.0*36.0*10.1 64.5*16.0 56.2*11.5 6H WHITE 16PIN MCU/8bit -20~70℃ 5.0V

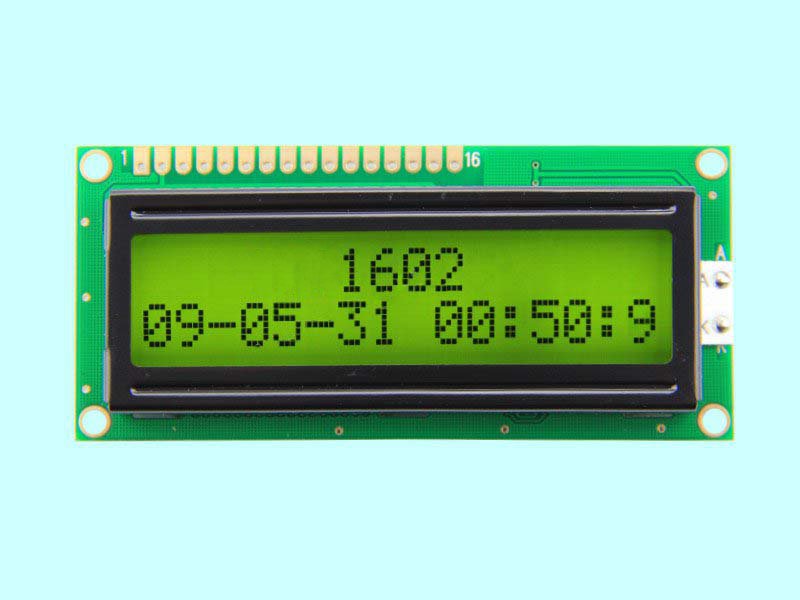

GLC1602B2 Character LCM 16*2 Character 80.0*36.0*13.1 64.5*15.8 55.8*10.64 6H YG 16PIN MCU/8bit -20~70℃ 5.0V

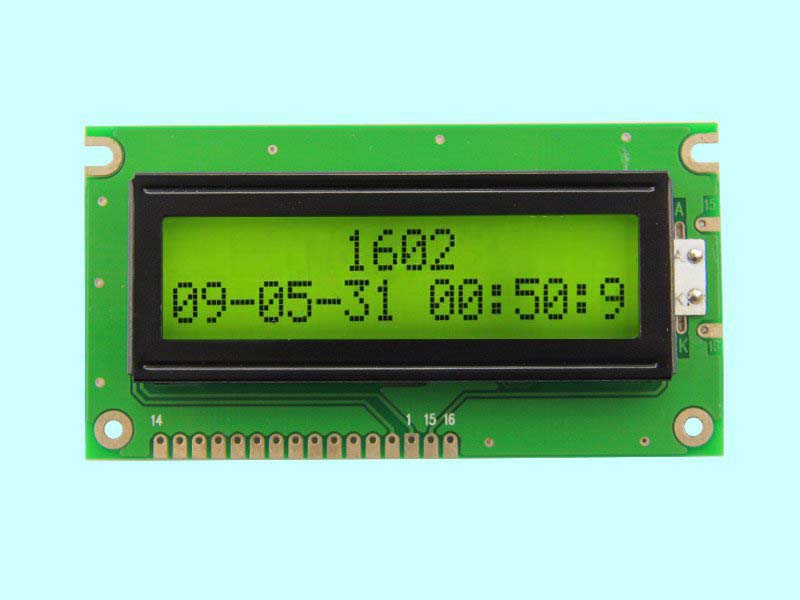

GLC1602B3 Character LCM 16*2 Character 84.0*44.0*13.5 61.0*15.8 56.2*11.5 6H YG 16PIN MCU/8bit -20~70℃ 5.0V

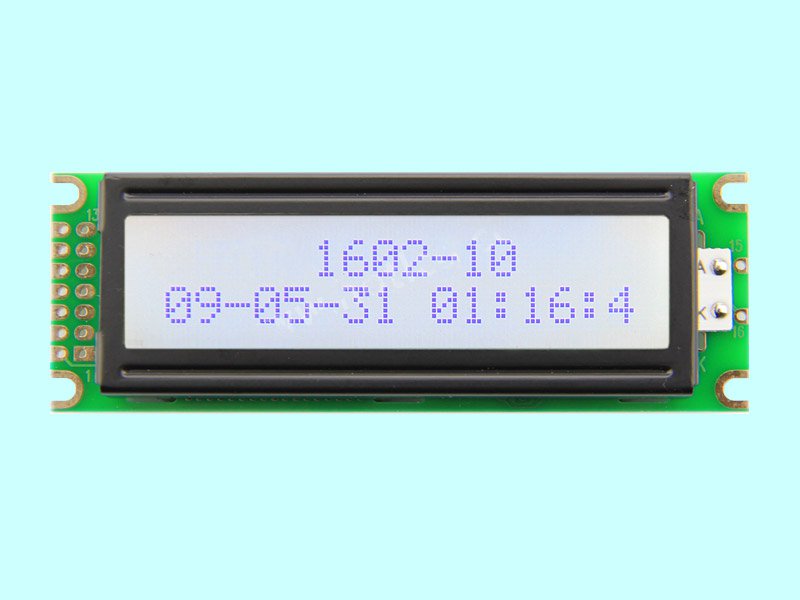

GLC1602B4 Character LCM 16*2 Character 85.0*29.5*13.1 64.5*15.8 55.8*10.64 6H WHITE 16PIN MCU/8bit -20~70℃ 5.0V

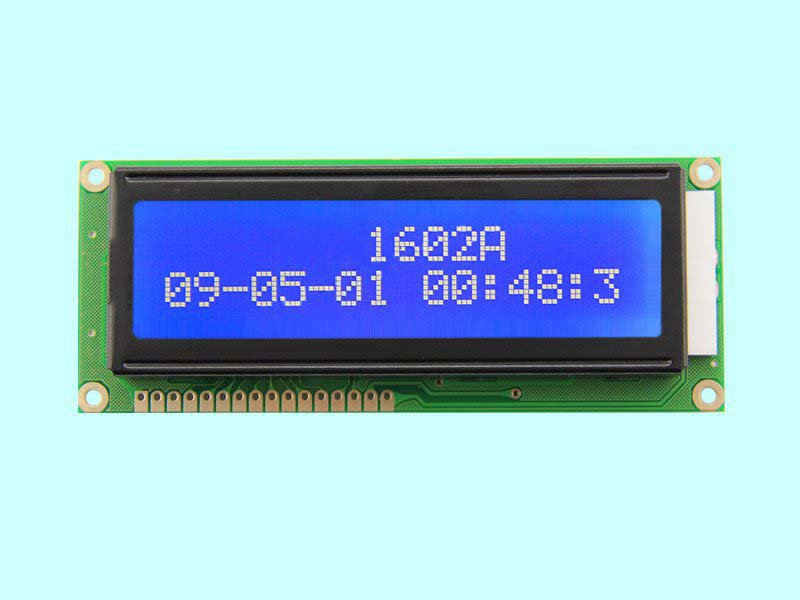

GLC1602B5 Character LCM 16*2 Character 100.0*38.0*13.0 80.0*20.5 76.37*16.02 6H WHITE 16PIN MCU/8bit -20~70℃ 5.0V

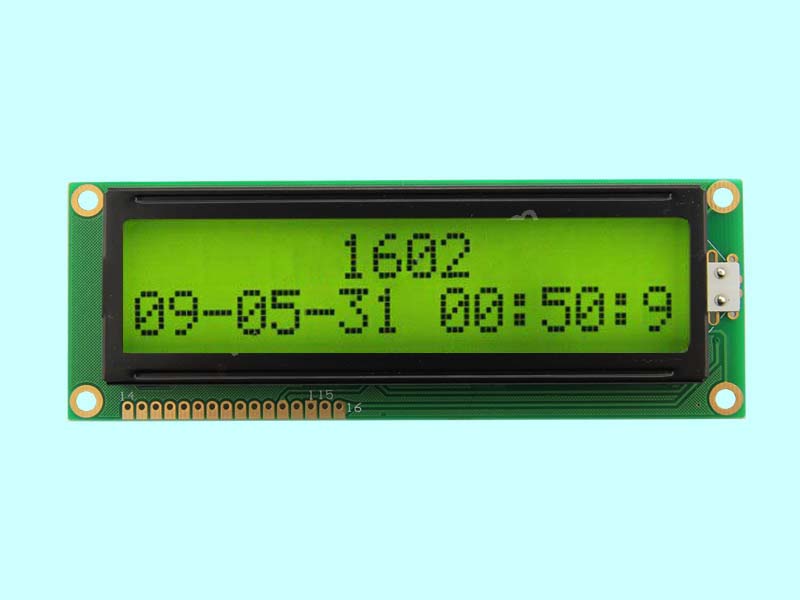

GLC1602B6 Character LCM 16*2 Character 122.0*44.0*14.6 99.0*24.0 94.8*20.0 6H GREEN 16PIN MCU/8bit -20~70℃ 5.0V

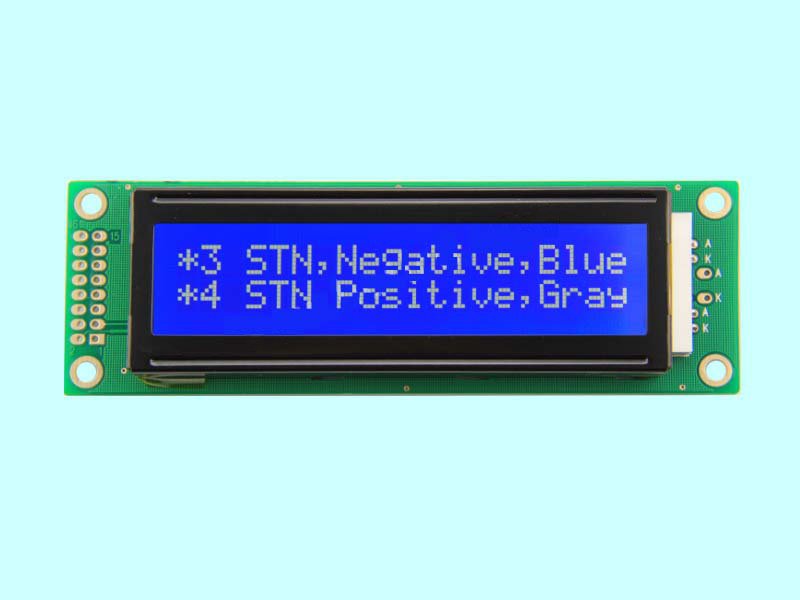

GLC2002B1 Character LCM 20*2 Character 116.0*37.0*14.6 83.0*18.6 75.4*11.5 6H YG 16PIN MCU/8bit -20~70℃ 5.0V

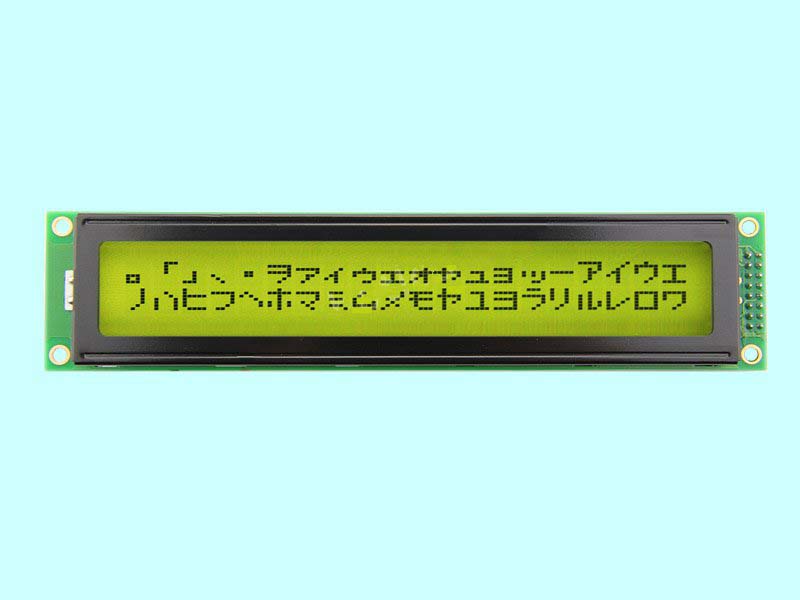

GLC2002B2 Character LCM 20*2 Character 180.0*40.0*11.0 149.0*23.0 142.8*20.64 6H YG 16PIN MCU/8bit -10~60℃ 5.0V

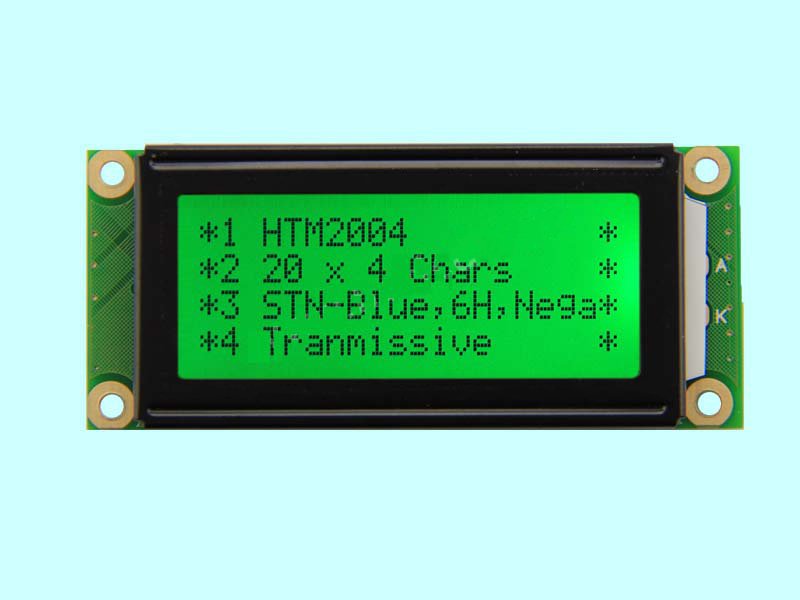

GLC2004B1 Character LCM 20*4 Character 65.91*28.4*7.6 45.2*27.0 46.0*18.4 6H green 16PIN MCU/8bit -20~70℃ 5.0V

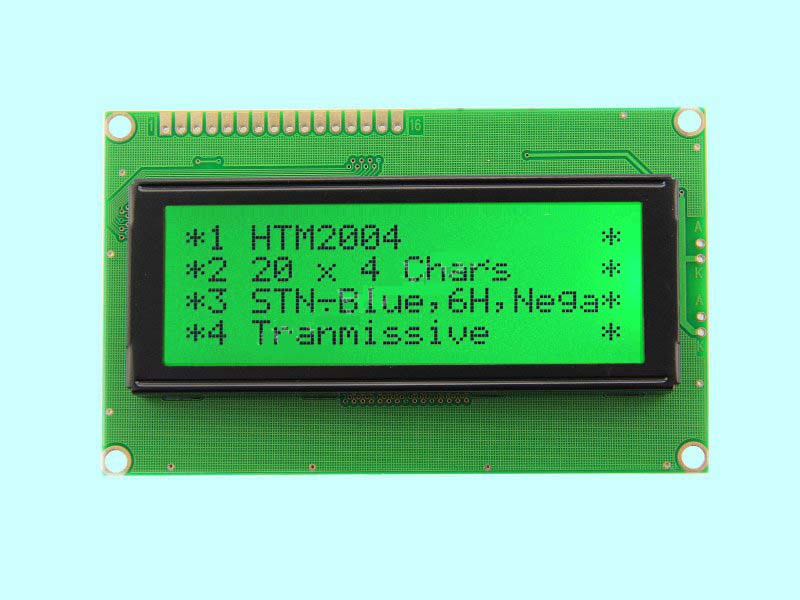

GLC2004B2 Character LCM 20*4 Character 98.0*60.0*14.2 76.0*25.8 70.4*20.8 6H GREEN 16PIN MCU/8bit -20~70℃ 5.0V
GLC2004B3 Character LCM 20*4 Character 105.0*38.0*10.2 76.0*25.8 70.4*20.8 6H green 15PIN MCU/8bit -20~70℃ 5.0V

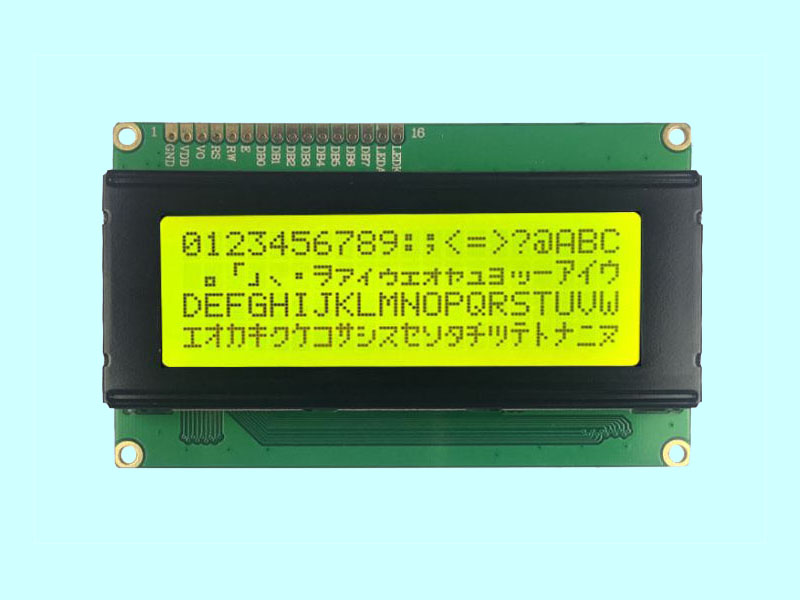

GLC2004B4 Character LCM 20*4 Character 98*60*13.2 77.0*25.2 70.4*20.8 6H green 15PIN MCU/8bit -20~70℃ 5.0V

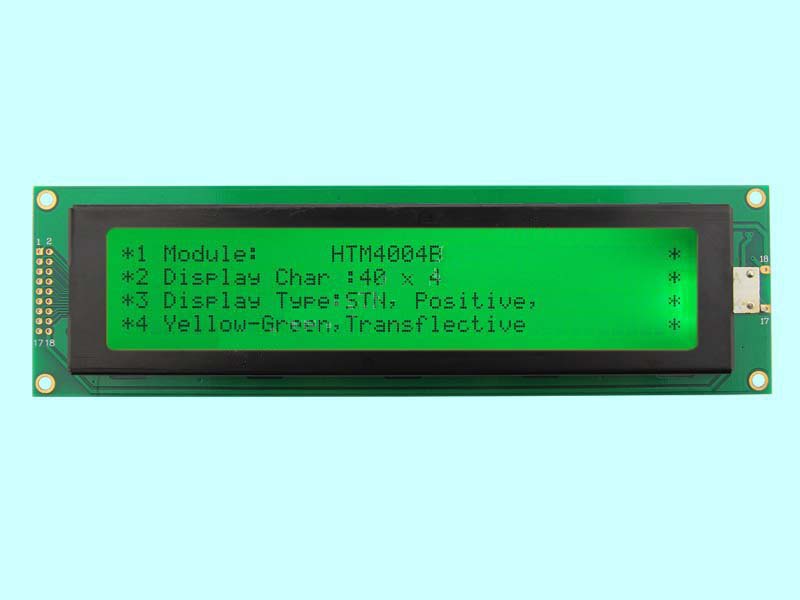

GLC4004B1 Character LCM 40*4 Character 190.0*54.0*14.9 147.0*29.5 140.27*23.18 6H GREEN 18PIN MCU/8bit -20~70℃ 5.0V
