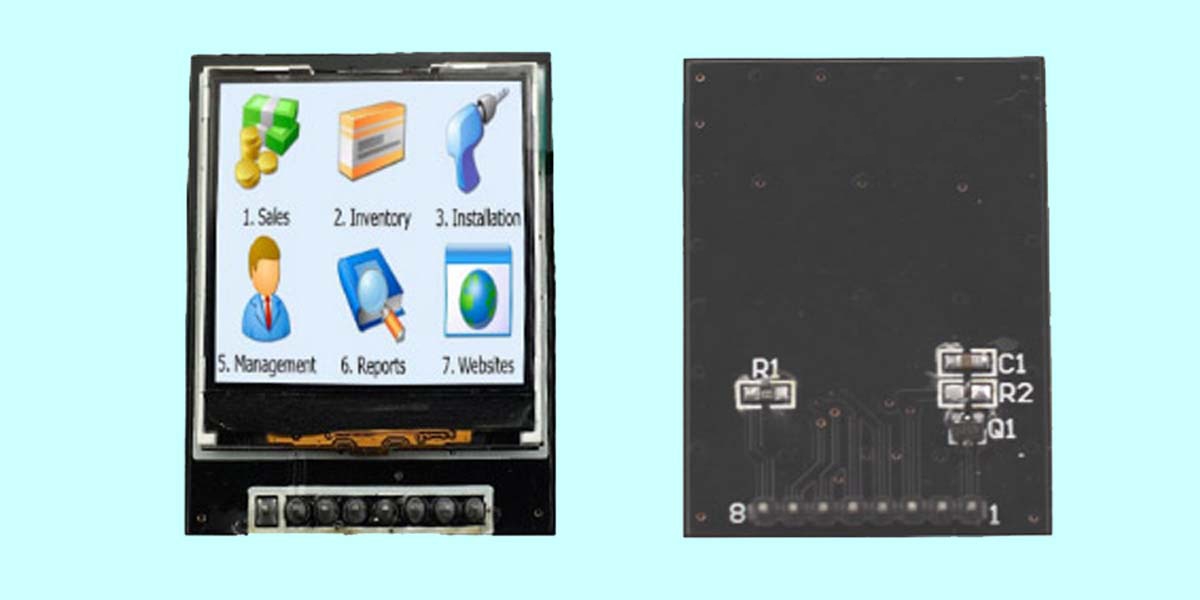

Part number: GLDB0144128128A1

LCD size and resoluton: 1.44", 128*128

Outline size (mm): 45.00*32.36

Display view size (mm): 26.50*25.50

LCD type and viewing angle: TN, 12:00

Backlight type or brightness: LED, 300nit

Interface mode: SPI

Connector PIN Number: 8pin

Working temperature: -20~70℃

Power supply voltage: 3.3V

Driver chip model: ST7735

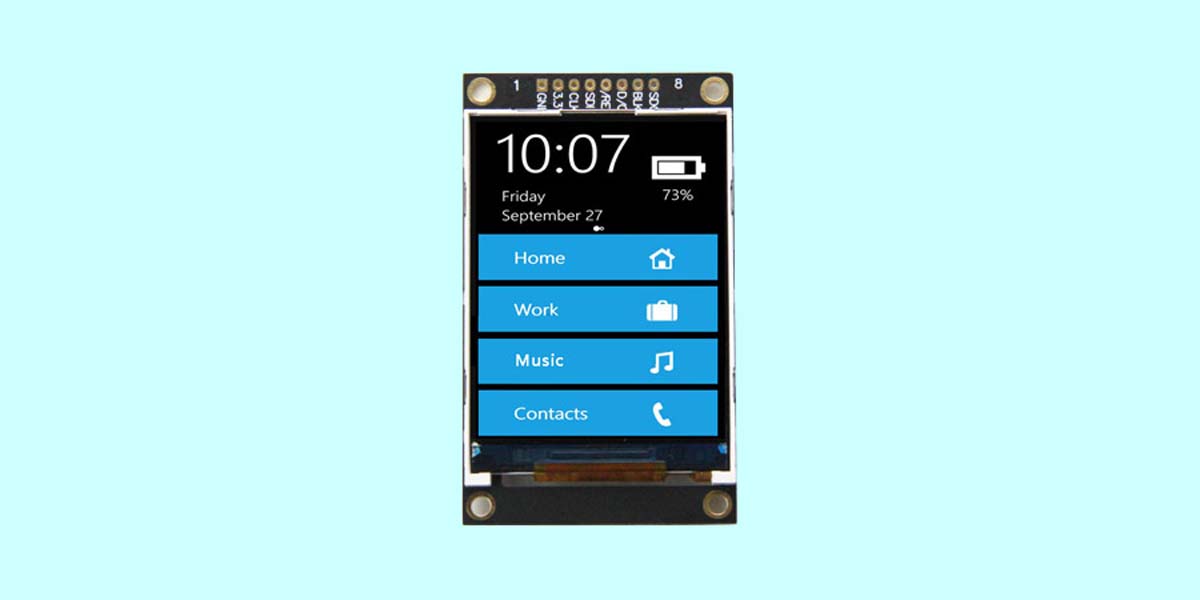

Part number: GLDB024240320A1

LCD size and resoluton: 2.4", 240*320

Outline size (mm): 37.00*52.00

Display view size (mm): 36.72*48.96

LCD type and viewing angle: IPS, All

Backlight type or brightness: LED, 850nit

Interface mode: SPI

Connector PIN Number: 8pin

Working temperature: -20~70℃

Power supply voltage: 3.3V

Driver chip model: ST7789V

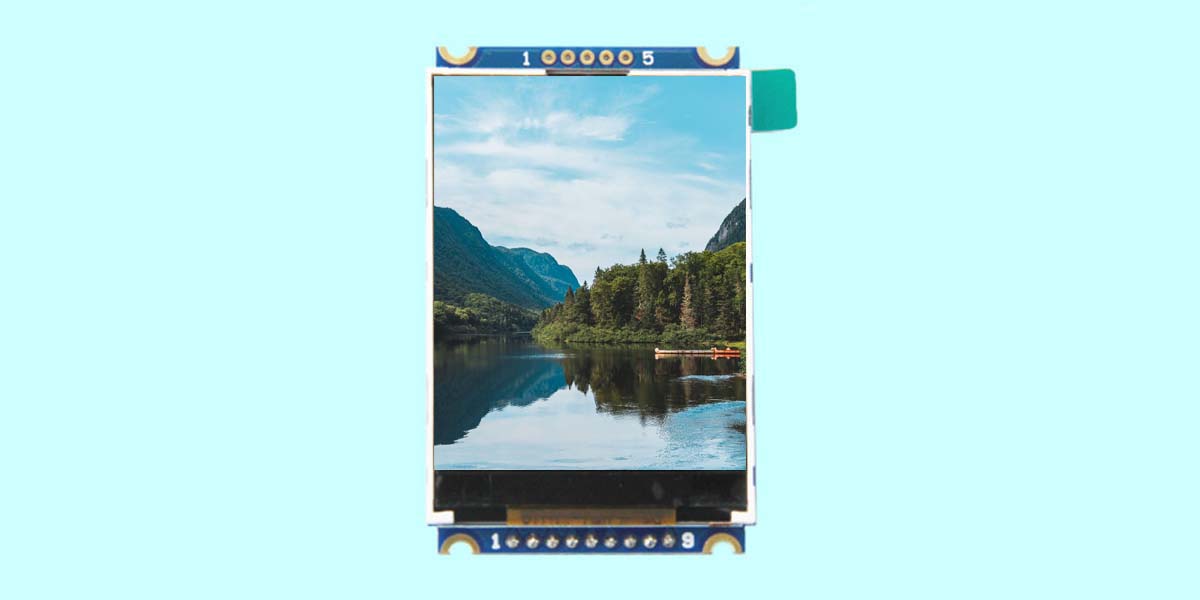

Part number: GLDB024240320A2

LCD size and resoluton: 2.4", 240*320

Outline size (mm): 67.20*47.72

Display view size (mm): 36.72*48.96

LCD type and viewing angle: TN, 6:00

Backlight type or brightness: LED, 300nit

Interface mode: SPI

Connector PIN Number: 9pin

Working temperature: -20~70℃

Power supply voltage: 3.3V

Driver chip model: ILI9341

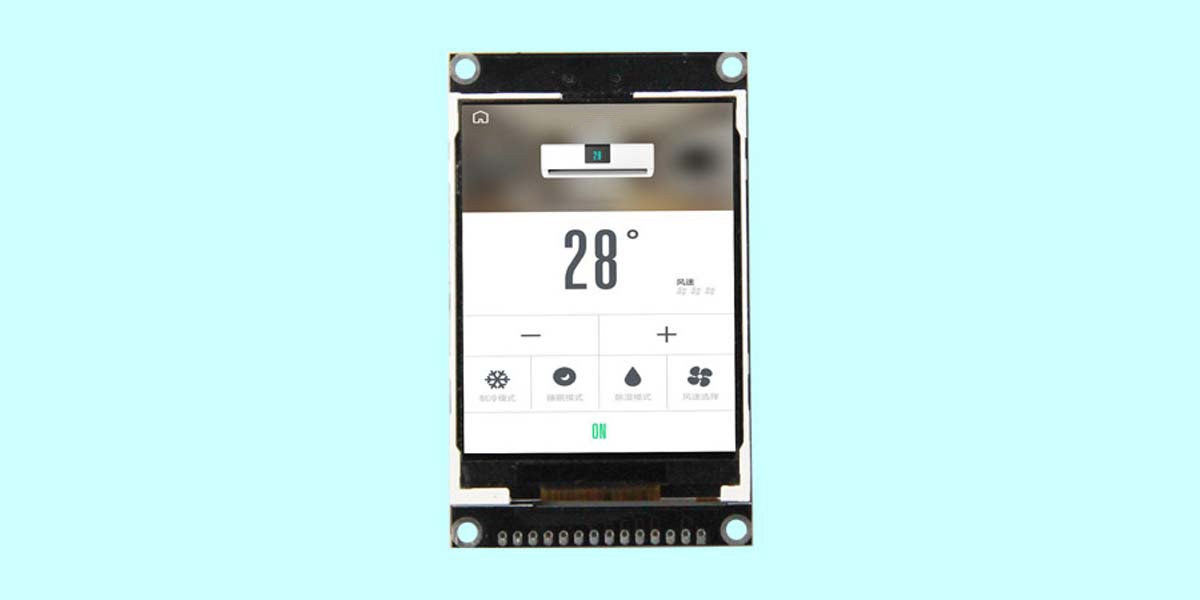

Part number: GLDB028240320A1

LCD size and resoluton: 2.8", 240*320

Outline size (mm): 83.13*50.0*3.30

Display view size (mm): 43.2*57.6

LCD type and viewing angle: TN, 6:00

Backlight type or brightness: LED, 500nit

Interface mode: SPI

Connector PIN Number: 14pin

Working temperature: -20~70℃

Power supply voltage: 3.3V

Driver chip model: ILI9341

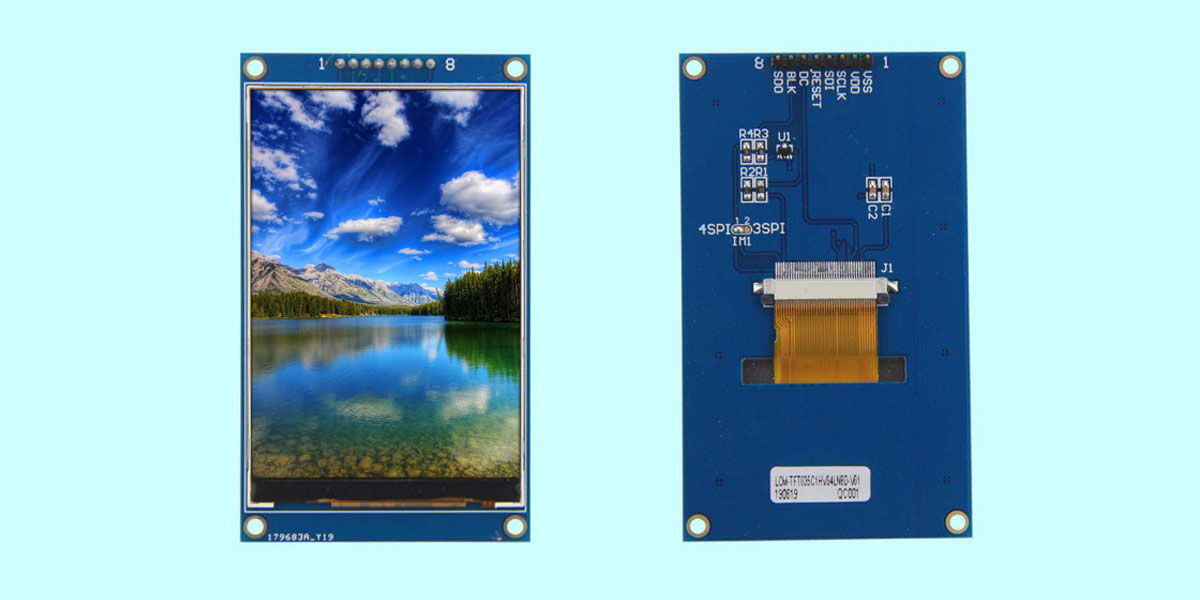

Part number: GLDB035320480A1

LCD size and resoluton: 3.5", 320*480

Outline size (mm): 57.26*96.5*11.3

Display view size (mm): 48.96*73.44

LCD type and viewing angle: TN, 12:00

Backlight type or brightness: LED, 250nit

Interface mode: SPI

Connector PIN Number: 8pin

Working temperature: -20~70℃

Power supply voltage: 3.3V

Driver chip model: ST7796S

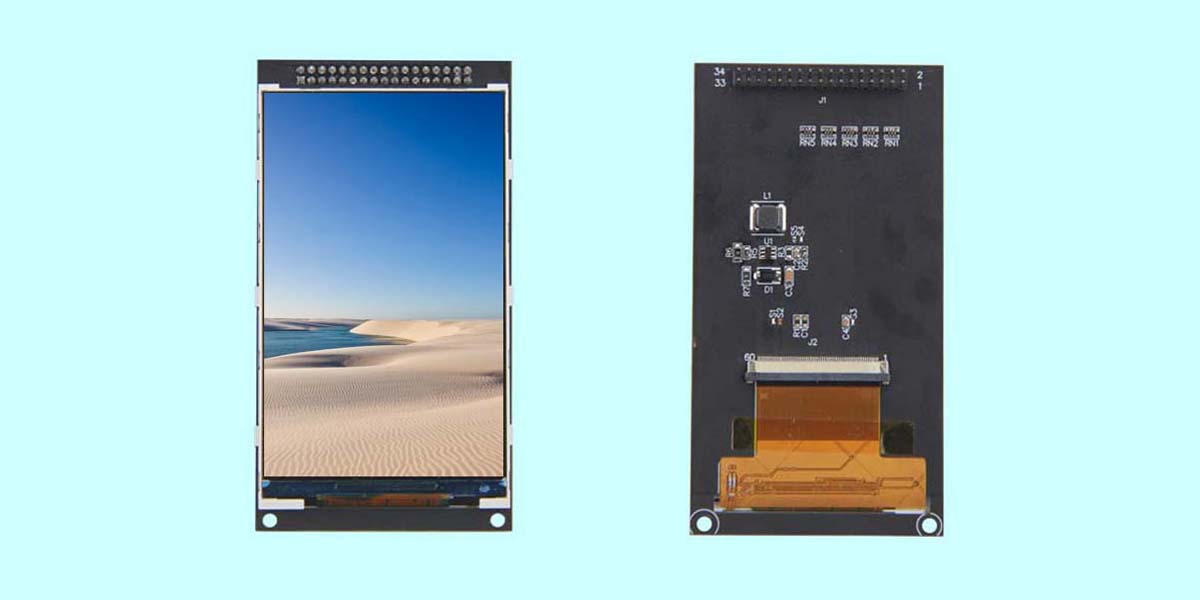

Part number: GLDB043480800A1

LCD size and resoluton: 4.3", 480*800

Outline size (mm): 60.86*104.50* 2.50

Display view size (mm): 56.16*93.60

LCD type and viewing angle: IPS, All

Backlight type or brightness: LED, 600nit

Interface mode: MCU

Connector PIN Number: 34pin

Working temperature: -20~70℃

Power supply voltage: 3.3V

Driver chip model: NT35510

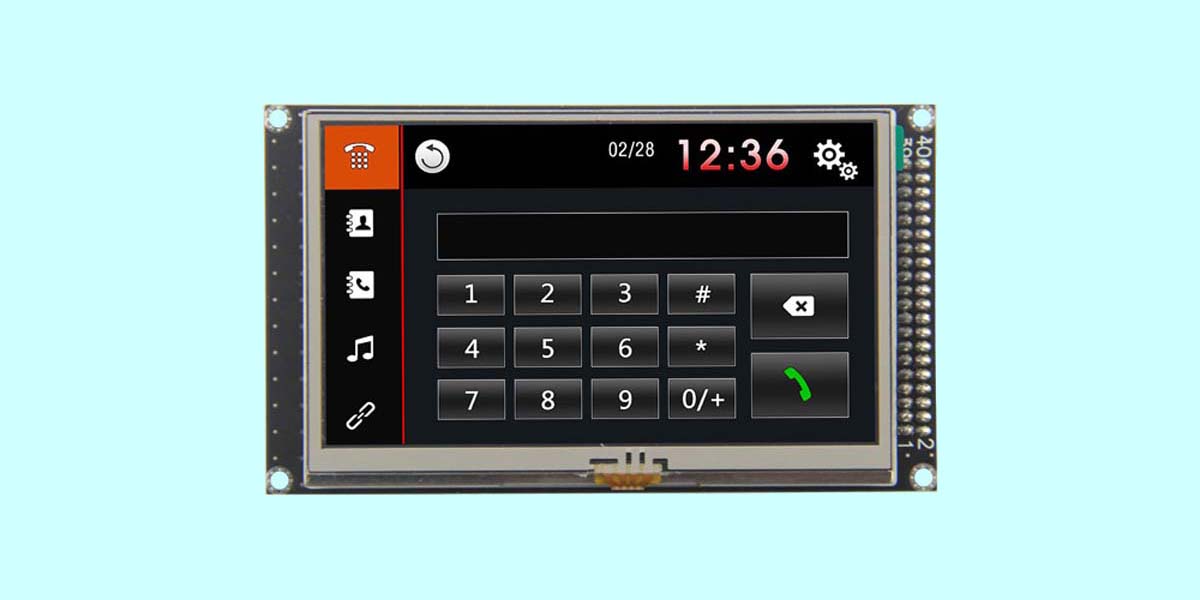

Part number: GLDB043800480A1, with RTP

LCD size and resoluton: 4.3", 800*480

Outline size (mm): 121.00*70.00*7.76

Display view size (mm): 95.04*53.85

LCD type and viewing angle: IPS, All

Backlight type or brightness: LED, 300nit

Interface mode: MCU

Connector PIN Number: 40pin

Working temperature: -20~70℃

Power supply voltage: 5.0V

Driver chip model: SSD1963

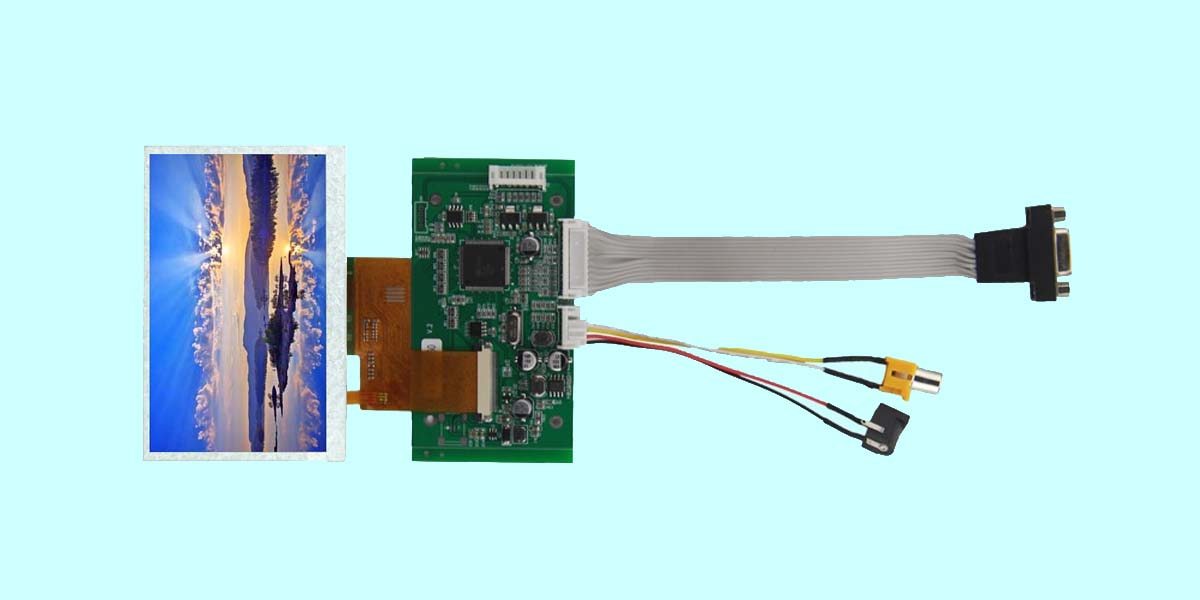

Part number: GLDB043800480A2

LCD size and resoluton: 4.3", 800*480

Outline size (mm): 105.5*67.2*2.95

Display view size (mm): 95.04*53.85

LCD type and viewing angle: IPS, All

Backlight type or brightness: LED, 500nit

Interface mode: VGA/AV

Connector PIN Number: N/A

Working temperature: -30~80℃

Power supply voltage: 12.0V

Driver chip model: N/A

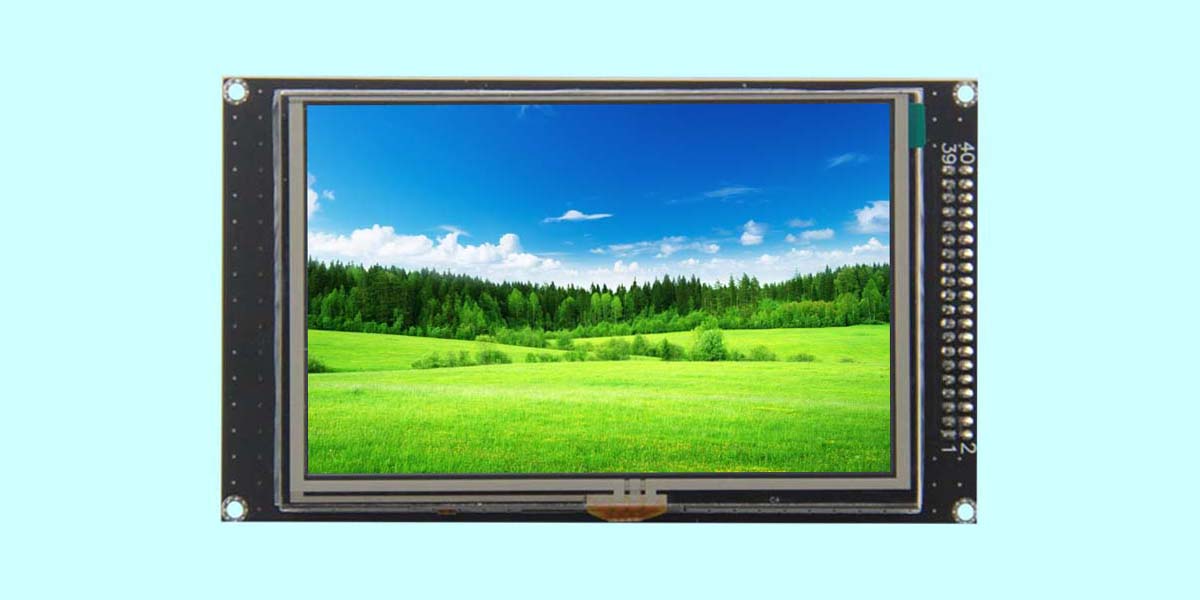

Part number: GLDB050800480A1, with RTP

LCD size and resoluton: 5.0", 800*480

Outline size (mm): 143.50*81.00*8.12

Display view size (mm): 108.00*64.80

LCD type and viewing angle: IPS, All

Backlight type or brightness: LED, 300nit

Interface mode: MCU

Connector PIN Number: 40pin

Working temperature: -20~70℃

Power supply voltage: 5.0V

Driver chip model: SSD1963

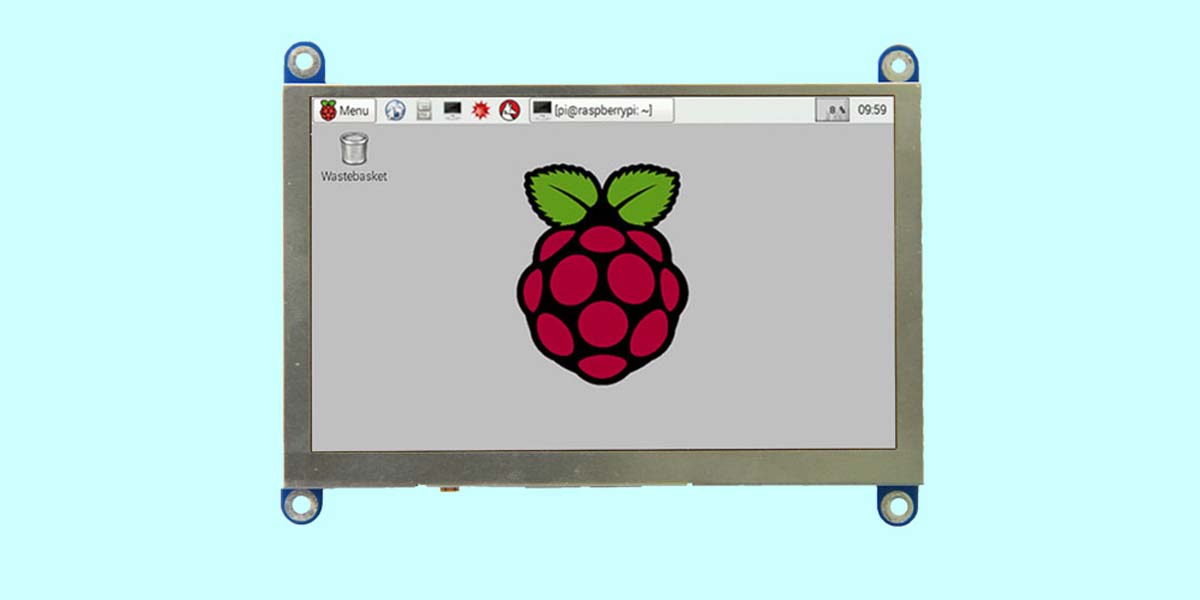

Part number: GLDB050800480A2, with RTP

LCD size and resoluton: 5.0", 800*480

Outline size (mm): 120.70*91.30

Display view size (mm): 110.00*68.00

LCD type and viewing angle: IPS, All

Backlight type or brightness: LED, 300nit

Interface mode: HDMI

Connector PIN Number: HDMI Type C

Working temperature: -20~70℃

Power supply voltage: 5.0V

Driver chip model: SSD1963

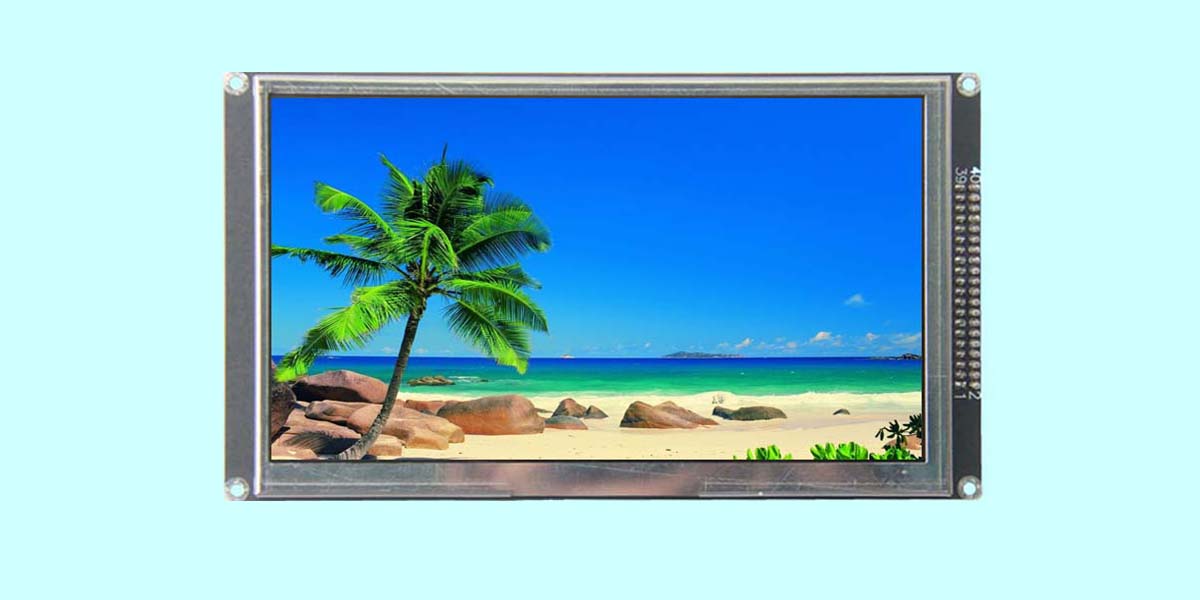

Part number: GLDB070800480A1, with RTP

LCD size and resoluton: 7.0", 800*480

Outline size (mm): 181.50*104.30*10.60

Display view size (mm): 153.84*85.63

LCD type and viewing angle: TN, 6:00

Backlight type or brightness: LED, 800nit

Interface mode: MCU

Connector PIN Number: 40pin

Working temperature: -20~70℃

Power supply voltage: 5.0V

Driver chip model: SSD1963

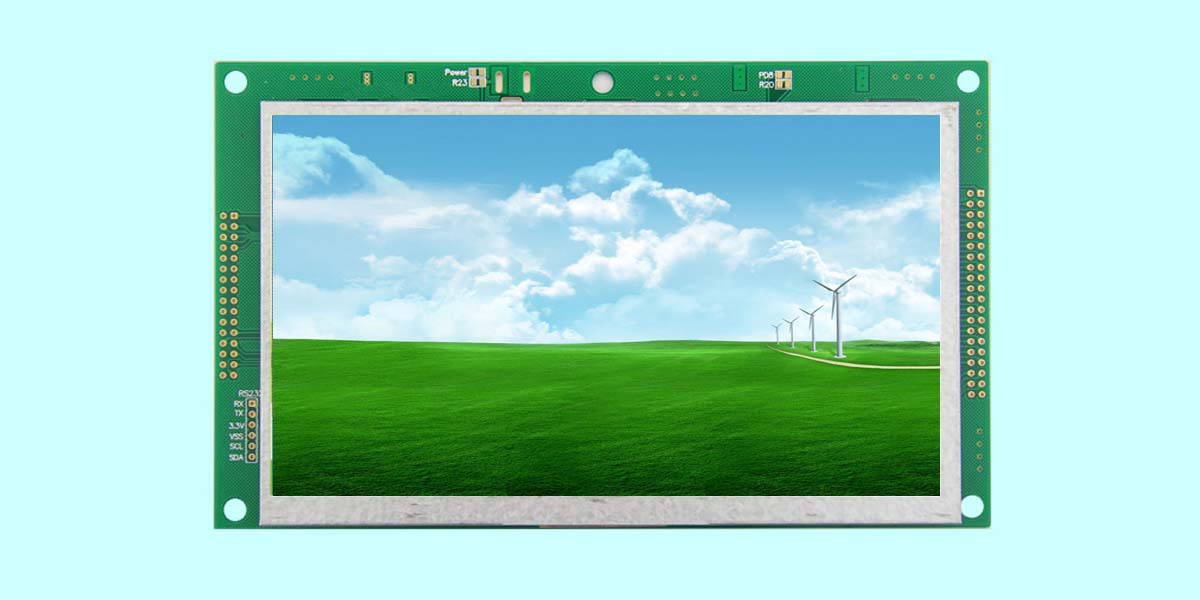

Part number: GLDB070800480A2

LCD size and resoluton: 7.0", 800*480

Outline size (mm): 185.52*112.12*12.00

Display view size (mm): 156.40*89.00

LCD type and viewing angle: TN, 6:00

Backlight type or brightness: LED, 800nit

Interface mode: MCU

Connector PIN Number: 40pin

Working temperature: -20~70℃

Power supply voltage: 3.3V

Driver chip model: SSD1963

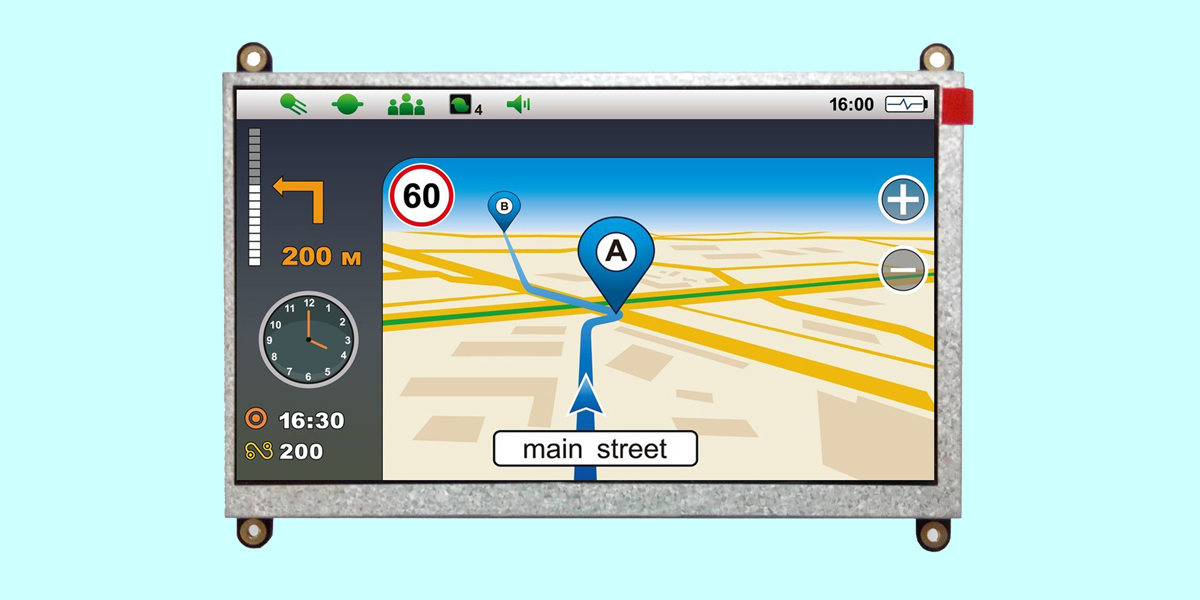

Part number: GLDB070800480A3

LCD size and resoluton: 7.0", 800*480

Outline size (mm): 164.90*100.00*5.70

Display view size (mm): 153.84*85.63

LCD type and viewing angle: TN, 12:00

Backlight type or brightness: LED, 400nit

Interface mode: MIPI

Connector PIN Number: N/A

Working temperature: -20~70℃

Power supply voltage: 5.0V

Driver chip model: N/A

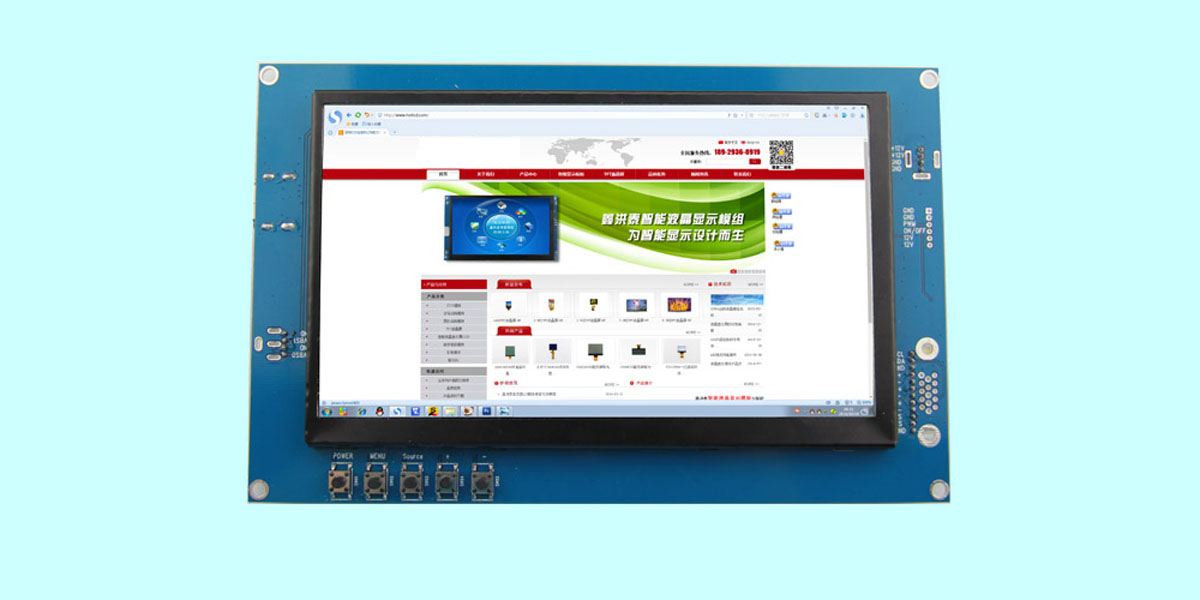

Part number: GLDB070800480A4

LCD size and resoluton: 7.0", 800*480

Outline size (mm): 200.00*126.60*10.50

Display view size (mm): 153.84*85.63

LCD type and viewing angle: TN, 6:00

Backlight type or brightness: LED, 400nit

Interface mode: HDMI/VGA/AV

Connector PIN Number: N/A

Working temperature: -20~70℃

Power supply voltage: 12.0V

Driver chip model: N/A
