GLT018128160TR1

GLT018128160TR1 is a 1.8 inch TN type color TFT LCD display with a resolution of 128x160, 262k color depth, and an optimal viewing angle of 12 o'clock. The driver IC is ST7735S (or compatible) with a MCU interface.

Display Specifications

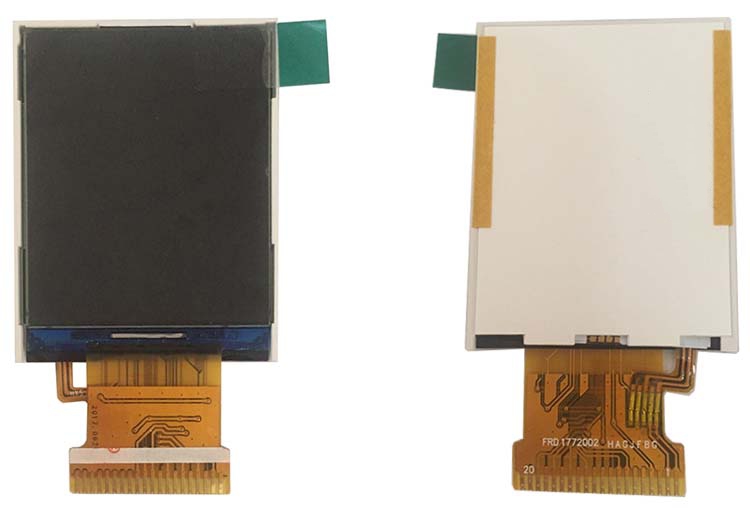

Display photo
Display Screen Size 1.8 inch
Orientation Portrait
Resolution 128 x 160
Color 262k
LCD Driver IC ST7735S
Interface Type MCU
FPC Pins 20
Module Size (W x H x T) mm 34.00 x 43.78 x 2.40
Active Area (W x H) mm 28.03 x 35.04
LCD Type TN
Viewing Angle 12 o'clock
Backlight LEDs and Current 2 LEDs, 20mA
Brightness (cd/m2) 250
Operating Temperature -20°C ~ 70°C
Touch Panel Option w/o (RTP/CTP panel can be customized)
