GLT023320240TR1

GLT023320240TR1 is a 2.3 inch TN type color TFT LCD display with a resolution of 320x240, 262k color depth, and an optimal viewing angle of 6 o'clock. The driver IC is ILI9342 (or compatible) with a SPI interface.

Display Specifications

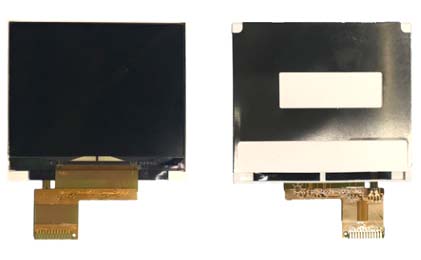

Display photo
Display Screen Size 2.3 inch
Orientation Landscape
Resolution 320 x 240
Color 262k
LCD Driver IC ILI9342
Interface Type SPI
FPC Pins 14
Module Size (W x H x T) mm 50.90 x 45.80 x 2.25
Active Area (W x H) mm 46.75 x 35.06
LCD Type TN
Viewing Angle 6 o'clock
Backlight LEDs and Current 4 LEDs, 80mA
Brightness (cd/m2) 250
Operating Temperature -20°C ~ 70°C
Touch Panel Option w/o (RTP/CTP panel can be customized)
