GLT035320240IS1-CTP

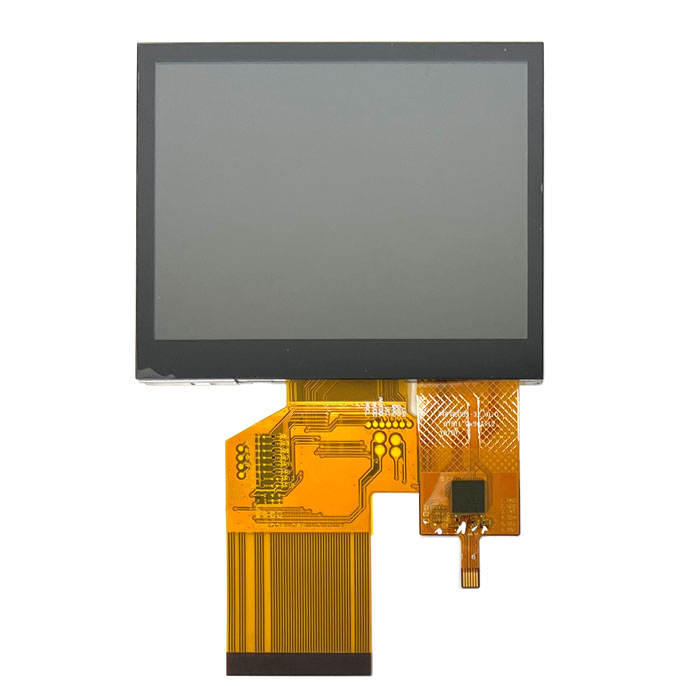

GLT035320240IS1-CTP is a 3.5 inch IPS type color TFT LCD display with a resolution of 320x240, 16.7M color depth, full viewing angle, and a CTP. The driver IC is ST7272A (or compatible) with a 24bit-RGB interface.

Display Specifications

LCD photo coming soon
Display Screen Size 3.5 inch
Orientation Landscape
Resolution 320 x 240
Color 16.7M
LCD Driver IC ST7272A
Interface Type 24bit-RGB
FPC Pins 54
Module Size (W x H x T) mm 76.90 x 63.90 x 4.89
Active Area (W x H) mm 70.08 x 52.56
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 9 LEDs, 20mA
Brightness (cd/m2) 900
Operating Temperature -20°C ~ 70°C
Touch Panel Option CTP
