GLT035320240TR1,H1,S1

GLT035320240TR1,H1,S1 is a 3.5 inch TN type color TFT LCD display with a resolution of 320x240, 16.7M color depth, and an optimal viewing angle of 12 o'clock. The driver IC is HX8238D, SSD2119 (or compatible) with a RGB interface (or/and SPI, MCU).

Display Specifications

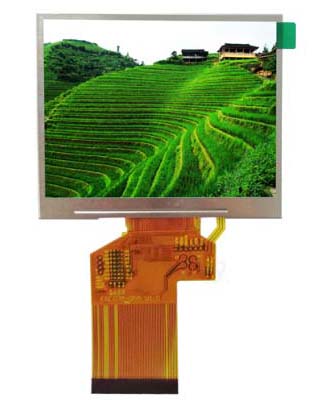

Display photo
Display Screen Size 3.5 inch
Orientation Landscape
Resolution 320 x 240
Color 16.7M
LCD Driver IC HX8238D/SSD2119
Interface Type 24bit-RGB (or/and SPI, MCU)
FPC Pins 50/54/60
Module Size (W x H x T) mm 76.90 x 63.90 x 3.26
Active Area (W x H) mm 70.08 x 52.56
LCD Type TN
Viewing Angle 12 o'clock
Backlight LEDs and Current 6 LEDs, 20mA
Brightness (cd/m2) 350, 500, 800
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
