GLT035320480IR1

GLT035320480IR1 is a 3.5 inch IPS type color TFT LCD display with a resolution of 320x480, 16.7M color depth, and full viewing angle. The driver IC is ILI9488 (or compatible) with a 24bit-RGB interface.

Display Specifications

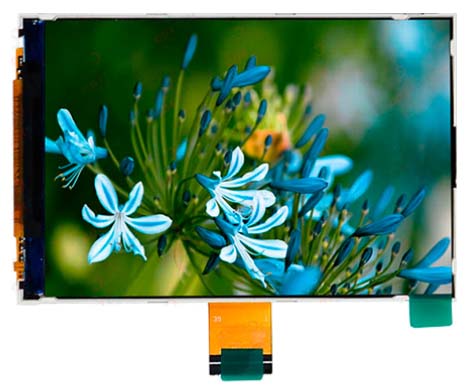

Display photo
Display Screen Size 3.5 inch
Orientation Portrait
Resolution 320 x 480
Color 16.7M
LCD Driver IC ILI9488
Interface Type 24bit-RGB
FPC Pins 45
Module Size (W x H x T) mm 54.76 x 83.58 x 2.50
Active Area (W x H) mm 48.96 x 73.44
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 6 LEDs, 20mA
Brightness (cd/m2) 350
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
