GLT040480480IR1

GLT040480480IR1 is a 4.0 inch IPS type color TFT LCD display with a resolution of 480x480, 16.7M color depth, and full viewing angle. The driver IC is ST7701-G5 (or compatible) with a 24bit-RGB interface.

Display Specifications

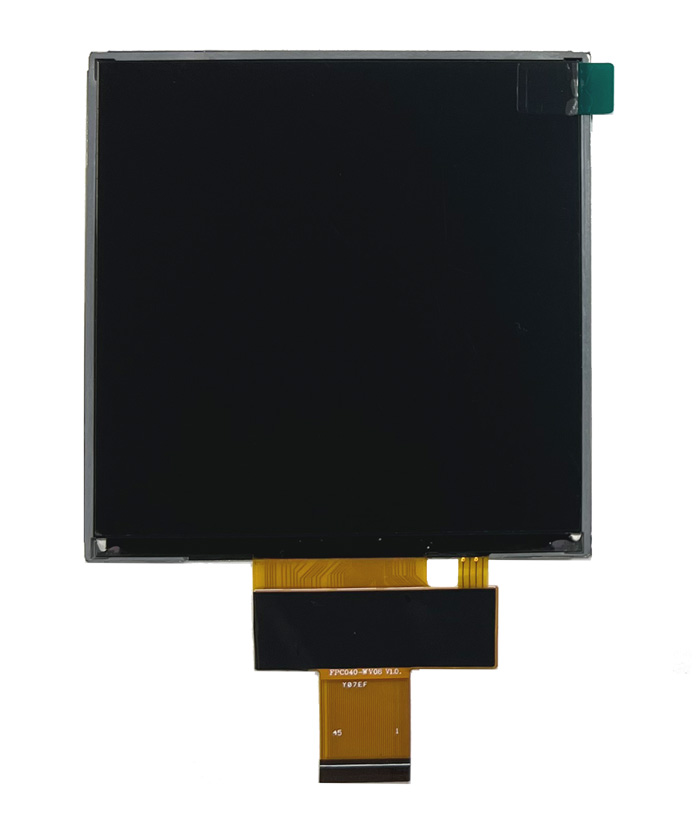

Display photo
Display Screen Size 4.0 inch
Orientation Landscape
Resolution 480 x 480
Color 16.7M
LCD Driver IC ST7701-G5
Interface Type 24bit-RGB
FPC Pins 45
Module Size (W x H x T) mm 77.66 x 78.97 x 2.30
Active Area (W x H) mm 71.86 x 70.18
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 10 LEDs, 40mA
Brightness (cd/m2) 350
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
