GLT043480272IH1,S1

GLT043480272IH1,S1 is a 4.3 inch IPS type color TFT LCD display with a resolution of 480x272, 16.7M color depth, and full viewing angle. The driver IC is ST7701 (or compatible) with a 24bit-RGB interface.

Display Specifications

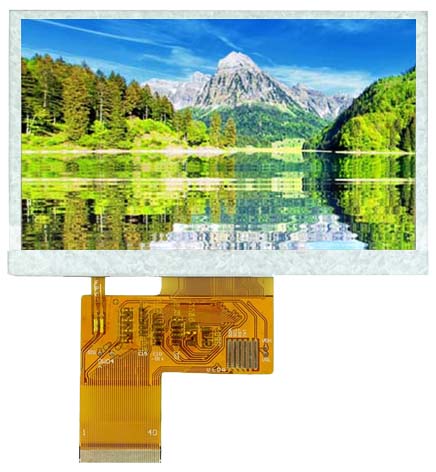

Display photo
Display Screen Size 4.3 inch
Orientation Landscape
Resolution 480 x 272
Color 16.7M
LCD Driver IC ST7701
Interface Type 24bit-RGB
FPC Pins 40
Module Size (W x H x T) mm 105.50 x 67.20 x 2.95
Active Area (W x H) mm 95.04 x 53.86
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 10 LEDs, 20mA
Brightness (cd/m2) 500, 1000
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
