GLT043480272TR1,H1,S1

GLT043480272TR1,H1,S1 is a 4.3 inch TN type color TFT LCD display with a resolution of 480x272, 16.7M color depth, and an optimal viewing angle of 12 o'clock. The driver IC is ILI6480 (or compatible) with a 24bit-RGB interface.

Display Specifications

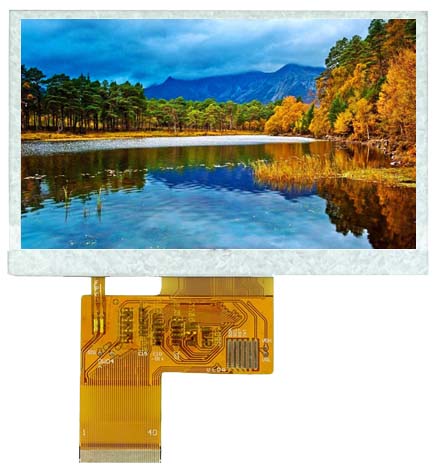

Display photo
Display Screen Size 4.3 inch
Orientation Landscape
Resolution 480 x 272
Color 16.7M
LCD Driver IC ILI6480
Interface Type 24bit-RGB
FPC Pins 40
Module Size (W x H x T) mm 105.50 x 67.20 x 2.95
Active Area (W x H) mm 95.04 x 53.86
LCD Type TN
Viewing Angle 12 o'clock
Backlight LEDs and Current 10 LEDs, 20mA/20mA/40mA
Brightness (cd/m2) 350, 500, 1000
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
