GLT043800480IH2

GLT043800480IH2 is a 4.3 inch IPS type color TFT LCD display with a resolution of 800x480, 16.7M color depth, and full viewing angle. The driver IC is HX8264 + HX8664 (or compatible) with a 24bit-RGB interface.

Display Specifications

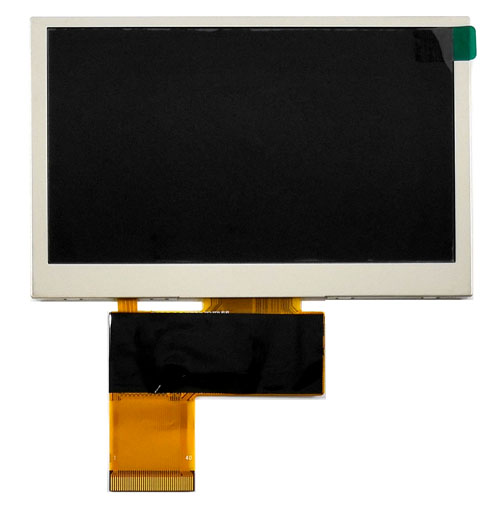

Display photo
Display Screen Size 4.3 inch
Orientation Landscape
Resolution 800 x 480
Color 16.7M
LCD Driver IC HX8264 + HX8664
Interface Type 24bit-RGB
FPC Pins 40
Module Size (W x H x T) mm 105.50 x 67.20 x 2.95
Active Area (W x H) mm 95.04 x 53.86
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 10 LEDs, 40mA
Brightness (cd/m2) 600
Operating Temperature -30°C ~ 85°C
Touch Panel Option No
