GLT0701024600IR1

GLT0701024600IR1 is a 7.0 inch IPS type color TFT LCD display with a resolution of 1024x600, 16.7M color depth, and full viewing angle. The driver IC is EK79001 (or compatible) with a RGB interface.

Display Specifications

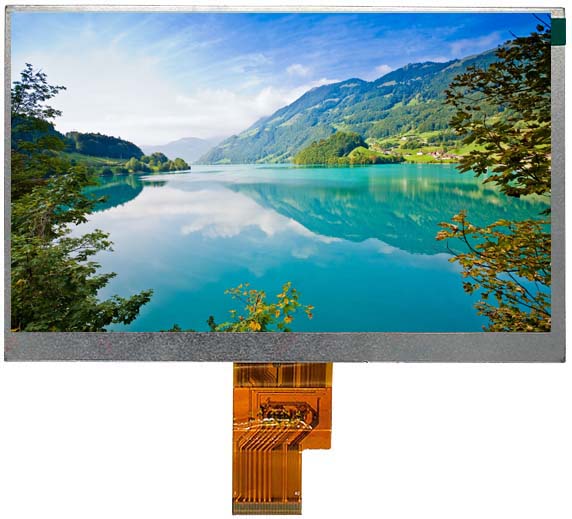

Display photo
Display Screen Size 7.0 inch
Orientation Landscape
Resolution 1024 x 600
Color 16.7M
LCD Driver IC EK79001
Interface Type 24-bit RGB
FPC Pins 50
Module Size (W x H x T) mm 164.90 x 100.00 x 5.70
Active Area (W x H) mm 154.21 x 85.92
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 24 LEDs, 20mA
Brightness (cd/m2) 350
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
