GLT0701024600IS4-CTP

GLT0701024600IS4-CTP is a 7.0 inch IPS type color TFT LCD display with a resolution of 1024x600, 16.7M color depth, full viewing angle, and a CTP. The driver IC is HX8282+HX8696 (or compatible) with a 24-bit RGB interface.

Display Specifications

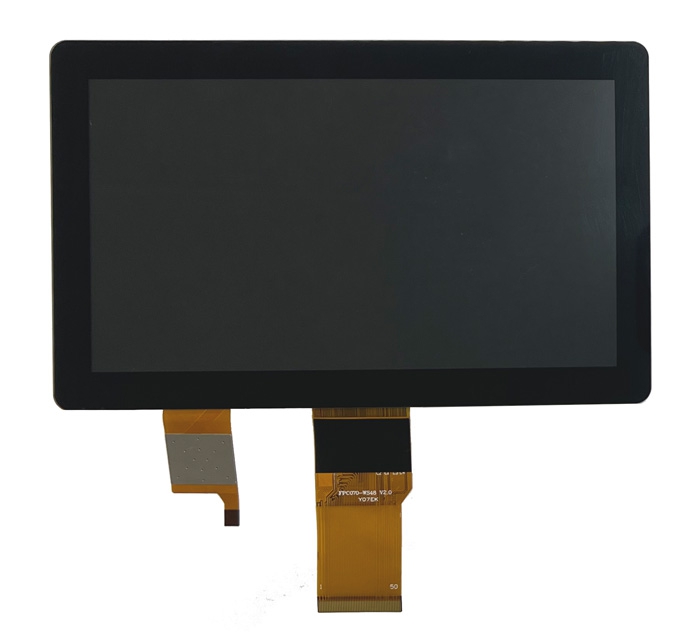

Display photo
Display Screen Size 7.0 inch
Orientation Landscape
Resolution 1024 x 600
Color 16.7M
LCD Driver IC HX8282+HX8696
Interface Type 24-bit RGB
FPC Pins 50
Module Size (W x H x T) mm 175.80 x 109.24 x 7.68
Active Area (W x H) mm 154.21 x 85.92
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 30 LEDs, 400mA
Brightness with CTP (cd/m2) 900
Operating Temperature -20°C ~ 70°C
Touch Panel Option CTP
