GLT0708001280IS1

GLT0708001280IS1 is a 7.0 inch IPS type color TFT LCD display with a resolution of 800x1280, 16.7M color depth, and full viewing angle. The driver IC is JD9366AB (or compatible) with a MIPI interface.

Display Specifications

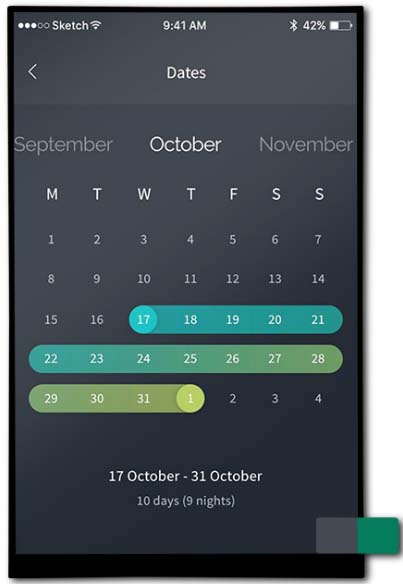

Display photo
Display Screen Size 7.0 inch
Orientation Portrait
Resolution 800 x 1280
Color 16.7M
LCD Driver IC JD9366AB
Interface Type MIPI
FPC Pins 31
Module Size (W x H x T) mm 107.98 x 163.80 x 4.20
Active Area (W x H) mm 94.20 x 150.72
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 45 LEDs, 300mA
Brightness (cd/m2) 1200
Operating Temperature -20°C ~ 60°C
Touch Panel Option RTP or CTP
