GLT070800480WS1-CTP

GLT070800480WS1-CTP is a 7.0 inch TN type wide viewing angle color TFT LCD display with a resolution of 800x480, 16.7M color depth, and a CTP. The driver IC is HX8664+HX8264 (or compatible) with a 24bit-RGB interface.

Display Specifications

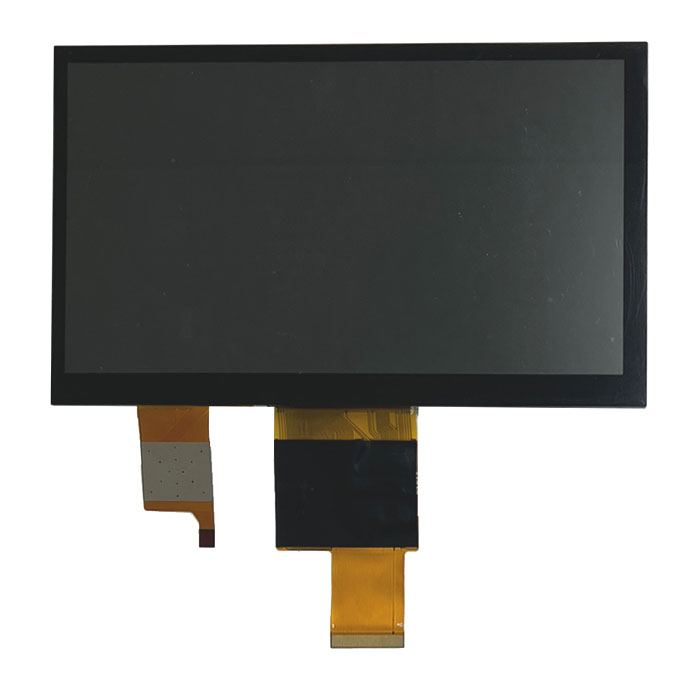

Display photo
Display Screen Size 7.0 inch
Orientation Landscape
Resolution 800 x 480
Color 16.7M
LCD Driver IC HX8664+HX8264
Interface Type 24bit-RGB
FPC Pins 40
Module Size (W x H x T) mm 165.00 x 100.00 x 7.72
Active Area (W x H) mm 154.08 x 85.92
LCD Type TN + O-film
Viewing Angle Wide viewing angle: 75/75/75/75
Backlight LEDs and Current 27 LEDs, 500mA
Brightness (cd/m2) 1200
Operating Temperature -20°C ~ 70°C
Touch Panel Option CTP
