GLT0808001280IH1

GLT0808001280IH1 is a 8.0 inch IPS type color TFT LCD display with a resolution of 800x1280, 16.7M color depth, and full viewing angle. The driver IC is JD9366AB (or compatible) with a MIPI interface.

Display Specifications

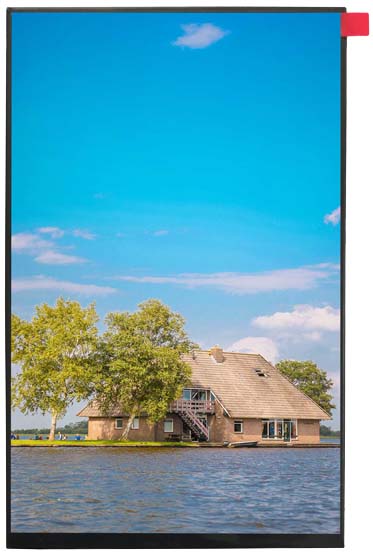

Display photo
Display Screen Size 8.0 inch
Orientation Portrait
Resolution 800 x 1280
Color 16.7M
LCD Driver IC JD9366AB
Interface Type MIPI
FPC Pins 34
Module Size (W x H x T) mm 114.60 x 184.10 x 2.65
Active Area (W x H) mm 107.64 x 172.22
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 24 LEDs, 160mA
Brightness (cd/m2) 800
Operating Temperature 0°C ~ 50°C
Touch Panel Option RTP or CTP
