GLT080800600TH1

GLT080800600TH1 is a 8.0 inch TN type color TFT LCD display with a resolution of 800x600, 16.7M color depth, and an optimal viewing angle of 12 o'clock. The driver IC is JD9366AB (or compatible) with a 24bit-RGB interface.

Display Specifications

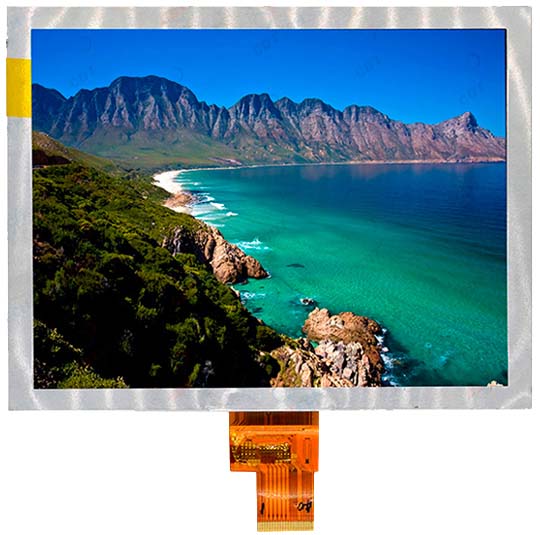

Display photo
Display Screen Size 8.0 inch
Orientation Landscape
Resolution 800 x 600
Color 16.7M
LCD Driver IC JD9366AB
Interface Type 24bit-RGB
FPC Pins 50
Module Size (W x H x T) mm 183.00 x 141.00 x 6.10
Active Area (W x H) mm 162.00 x 121.50
LCD Type TN
Viewing Angle 12 o'clock
Backlight LEDs and Current 27 LEDs, 540mA
Brightness (cd/m2) 1000
Operating Temperature -20°C ~ 60°C
Touch Panel Option RTP or CTP
