GLT1011280800IS1-CTP

GLT1011280800IS1-CTP is a 10.1 inch IPS type color TFT LCD display with a resolution of 1280x800, 16.7M color depth, full viewing angle, and a CTP. The driver IC is EK79202 (or compatible) with a LVDS interface.

Display Specifications

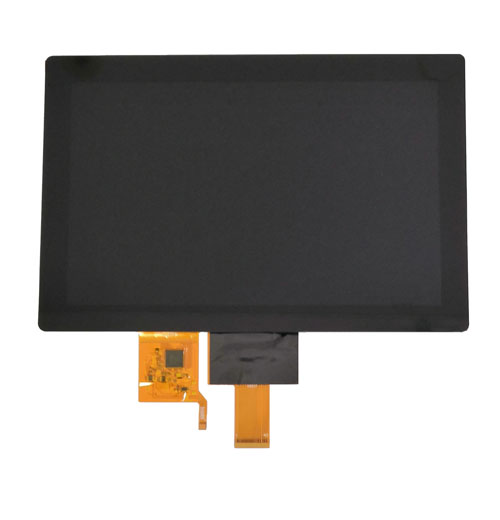

Display photo
Display Screen Size 10.1 inch
Orientation Landscape
Resolution 1280 x 800
Color 16.7M
LCD Driver IC EK79202
Interface Type LVDS
FPC Pins 40
Module Size (W x H x T) mm 229.46 x 149.10 x 4.50
Active Area (W x H) mm 216.96 x 135.60
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 45 LEDs, 450mA
Brightness (cd/m2) 1000
Operating Temperature -20°C ~ 70°C
Touch Panel Option CTP with Gorilla Glass
