GLT1011280800IS2-USBCTP-HDMI

GLT1011280800IS2-USBCTP-HDMI is a 10.1 inch IPS type color TFT LCD display with a resolution of 1280x800, 16.7M color depth, full viewing angle, USB CTP, and a HDMI interface board. The LCD driver IC is EK79202 (or compatible) with a LVDS interface.

Display Specifications

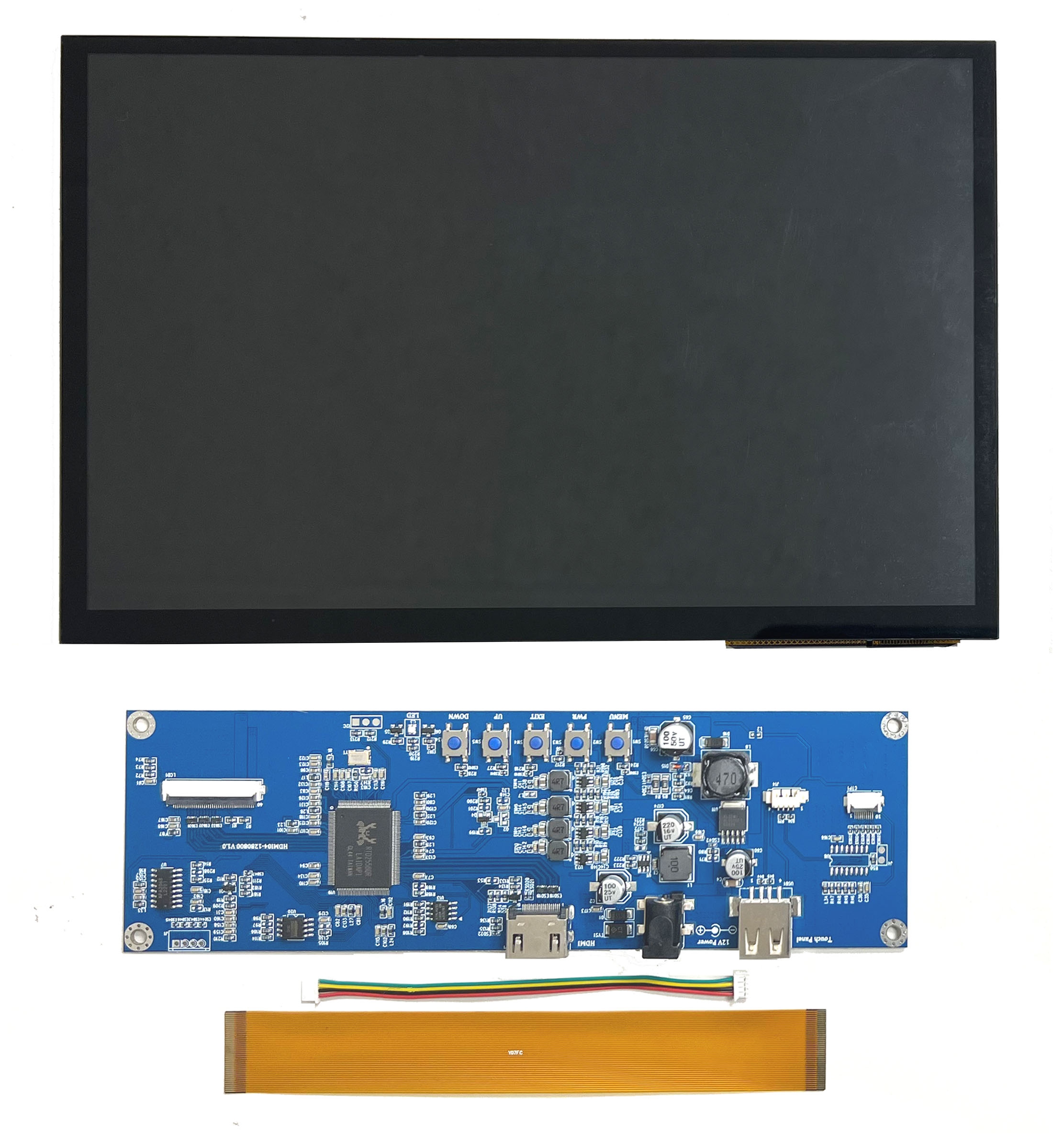

Display photo
Display Screen Size 10.1 inch
Orientation Landscape
Resolution 1280 x 800
Color 16.7M
LCD Driver IC EK79202
Interface Type LVDS, HDMI
FPC Pins 40
Module Size (W x H x T) mm 229.46 x 149.10 x 6.52
Active Area (W x H) mm 216.96 x 135.60
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 45 LEDs, 360mA
Brightness (cd/m2) 800
Operating Temperature -20°C ~ 70°C
Touch Panel Option CTP, USB CTP
