GLT1018001280IS1

GLT1018001280IS1 is a 10.1 inch IPS type color TFT LCD display with a resolution of 800x1280, 16.7M color depth, and full viewing angle. The driver IC is JD9366AB (or compatible) with a MIPI interface.

Display Specifications

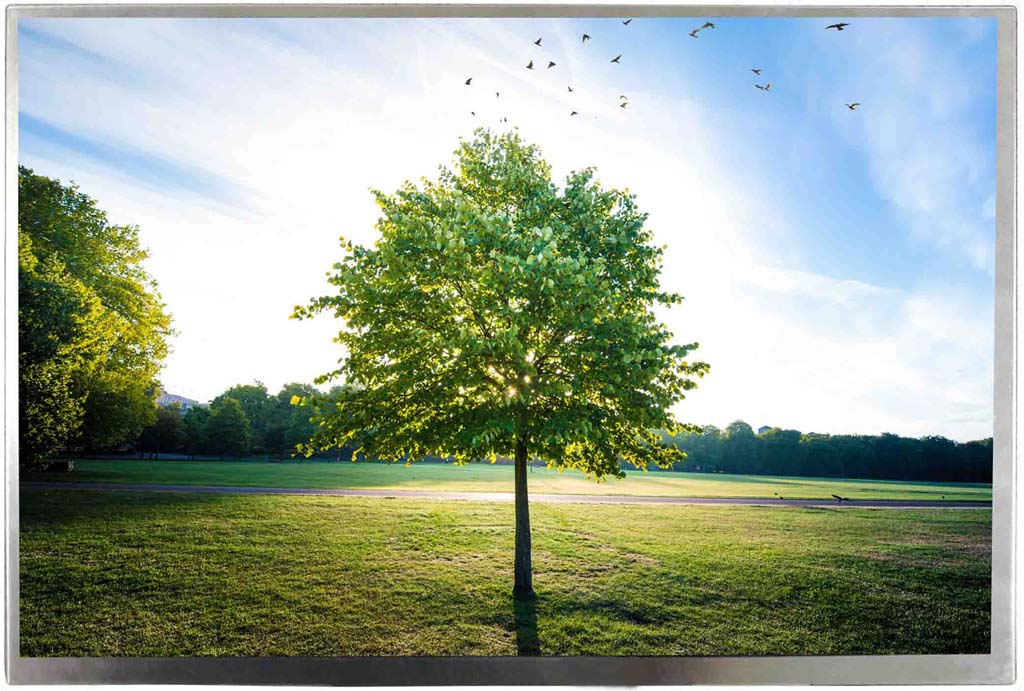

Display photo
Display Screen Size 10.1 inch
Orientation Portrait
Resolution 800 x 1280
Color 16.7M
LCD Driver IC JD9366AB
Interface Type MIPI
FPC Pins 40
Module Size (W x H x T) mm 143.00 x 228.60 x 2.70
Active Area (W x H) mm 135.36 x 216.58
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 30 LEDs, 200mA
Brightness (cd/m2) 700
Operating Temperature -20°C ~ 60°C
Touch Panel Option RTP or CTP
