GLT21519201080IR1

GLT21519201080IR1 is a 21.5 inch IPS type color TFT LCD display with a resolution of 1920x1080, 16.7M color depth, and full viewing angle. The driver IC is EK79001 +EK73215 (or compatible) with an EDP or LVDS interface.

Display Specifications

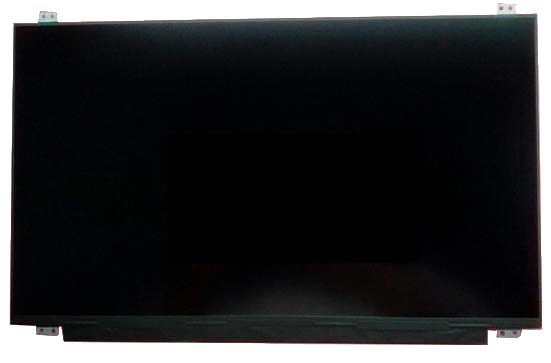

Display photo
Display Screen Size 21.5 inch
Orientation Landscape
Resolution 1920 x 1080
Color 16.7M
LCD Driver IC EK79001+EK73215
Interface Type EDP or LVDS
FPC Pins 30
Module Size (W x H x T) mm 487.54 x 279.68 x 13.35
Active Area (W x H) mm 476.64 x 268.11
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 60 LEDs, 270mA
Brightness (cd/m2) 250
Operating Temperature 0°C ~ 50°C
Touch Panel Option RTP or CTP
