GLT046800320TR1

GLT046800320TR1 is a 4.6 inch TN type ultra-wide color TFT LCD display with a resolution of 800x320, 16.7M color depth, and an optimal viewing angle of 12 o'clock. The driver IC is EK73002+EK9713 (or compatible) with a 24bit-RGB interface.

Display Specifications

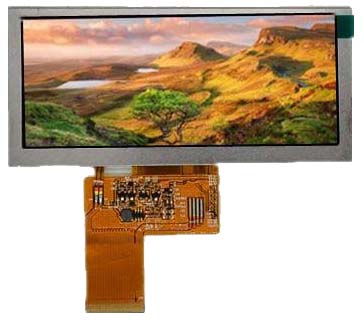

Display photo
Display Screen Size 4.6 inch
Orientation Landscape
Resolution 800 x 320
Color 16.7M
LCD Driver IC EK73002+EK9713
Interface Type 24bit-RGB
FPC Pins 40
Module Size (W x H x T) mm 120.70 x 56.16 x 3.10
Active Area (W x H) mm 108.00 x 43.20
LCD Type TN
Viewing Angle 12 o'clock
Backlight LEDs and Current 12 LEDs, 40mA
Brightness (cd/m2) 550
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
