GLT058800320TR1

GLT058800320TR1 is a 5.8 inch TN type ultra-wide color TFT LCD display with a resolution of 800x320, 16.7M color depth, and an optimal viewing angle of 12 o'clock. The driver IC is HX8664+HX8264 (or compatible) with a 24bit-RGB interface.

Display Specifications

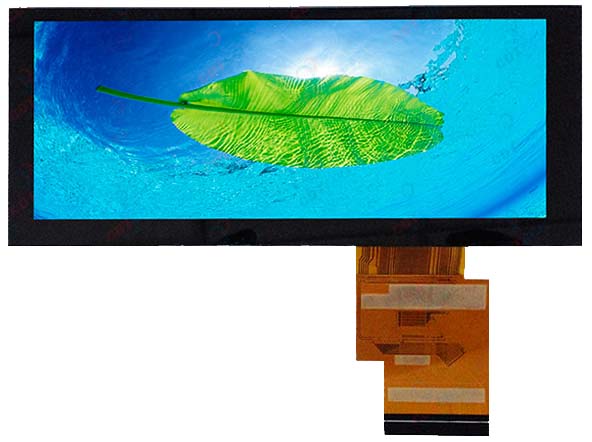

Display photo
Display Screen Size 5.8 inch
Orientation Landscape
Resolution 800 x 320
Color 16.7M
LCD Driver IC HX8664+HX8264
Interface Type 24bit-RGB
FPC Pins 60
Module Size (W x H x T) mm 154.40 x 63.34 x 3.50
Active Area (W x H) mm 137.52 x 51.44
LCD Type TN
Viewing Angle 12 o'clock
Backlight LEDs and Current 24 LEDs, 160mA
Brightness (cd/m2) 500
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP or CTP
