GLT0881280320IS1

GLT0881280320IS1 is a 8.8 inch IPS type ultra-wide color TFT LCD display with a resolution of 1280x320, 16.7M color depth, and full viewing angle. The driver IC is EK79202 (or compatible) with a LVDS interface.

Display Specifications

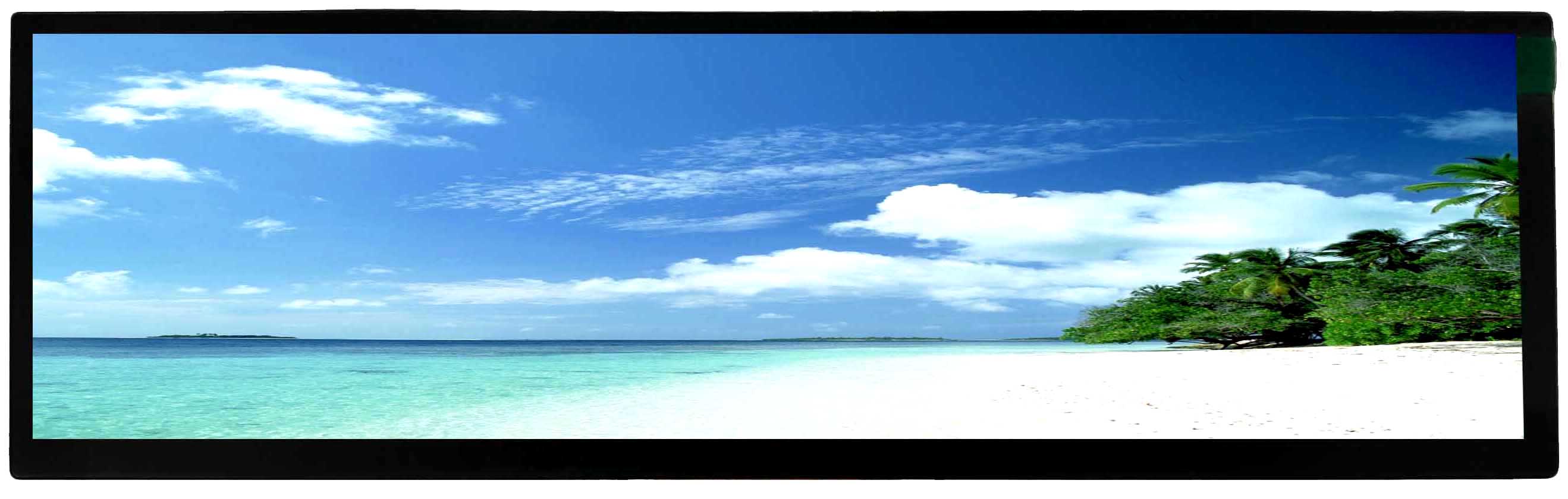

Display photo
Display Screen Size 8.8 inch
Orientation Landscape
Resolution 1280 x 320
Color 16.7M
LCD Driver IC EK79202
Interface Type LVDS
FPC Pins 40
Module Size (W x H x T) mm 229.66 x 67.50 x 3.50
Active Area (W x H) mm 216.96 x 54.24
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 36 LEDs, 180mA
Brightness (cd/m2) 1200
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP/CTP
