GLT0901280240IS1

GLT0901280240IS1 is a 9.0 inch IPS type ultra-wide color TFT LCD display with a resolution of 1280x240, 16.7M color depth, and full viewing angle. The driver IC is EK79202 (or compatible) with a LVDS interface.

Display Specifications

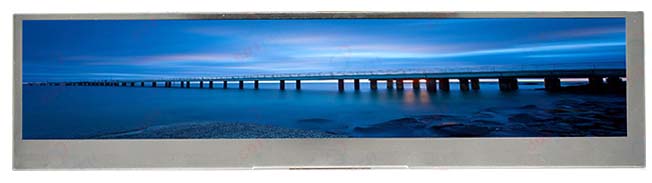

Display photo
Display Screen Size 9.0 inch
Orientation Landscape
Resolution 1280 x 240
Color 16.7M
LCD Driver IC EK79202
Interface Type LVDS
FPC Pins 40
Module Size (W x H x T) mm 237.00 x 58.95 x 4.00
Active Area (W x H) mm 223.68 x 42.00
LCD Type IPS
Viewing Angle All
Backlight LEDs and Current 40 LEDs, 180mA
Brightness (cd/m2) 600
Operating Temperature -20°C ~ 70°C
Touch Panel Option RTP/CTP
